FMB020
2G ultra-small Plug & Play tracker for a wide range of use cases
29.1 mm width casing allows this device to fit perfectly in any car
Simply plug the device in OBD-II port and start tracking
Achieve efficient fuel consumption, prolong vehicle life and increase road safety with eco driving scenario
Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement
PRODUCT SPECIFICATIONS
Name
Teltonika TM2500
Technology
GSM/GPRS/GNSS/BLUETOOTH® LE
GNSS
GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver
33 channel
Tracking sensitivity
-165 dBM
Position Accuracy
< 3 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Hot start
< 1 s
Warm start
< 25 s
Cold start
< 35 s
Technology
GSM
2G bands
Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer
GPRS Multi-Slot Class 12(up to 240 kbps)
Data support
SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, MQTT)
Input voltage range
10 – 30 V DC with overvoltage protection
Back-up battery
3.7 V 45 mAh
Specification
4.0 + LE
Supported peripherals
Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal Bluetooth®LE sensors support

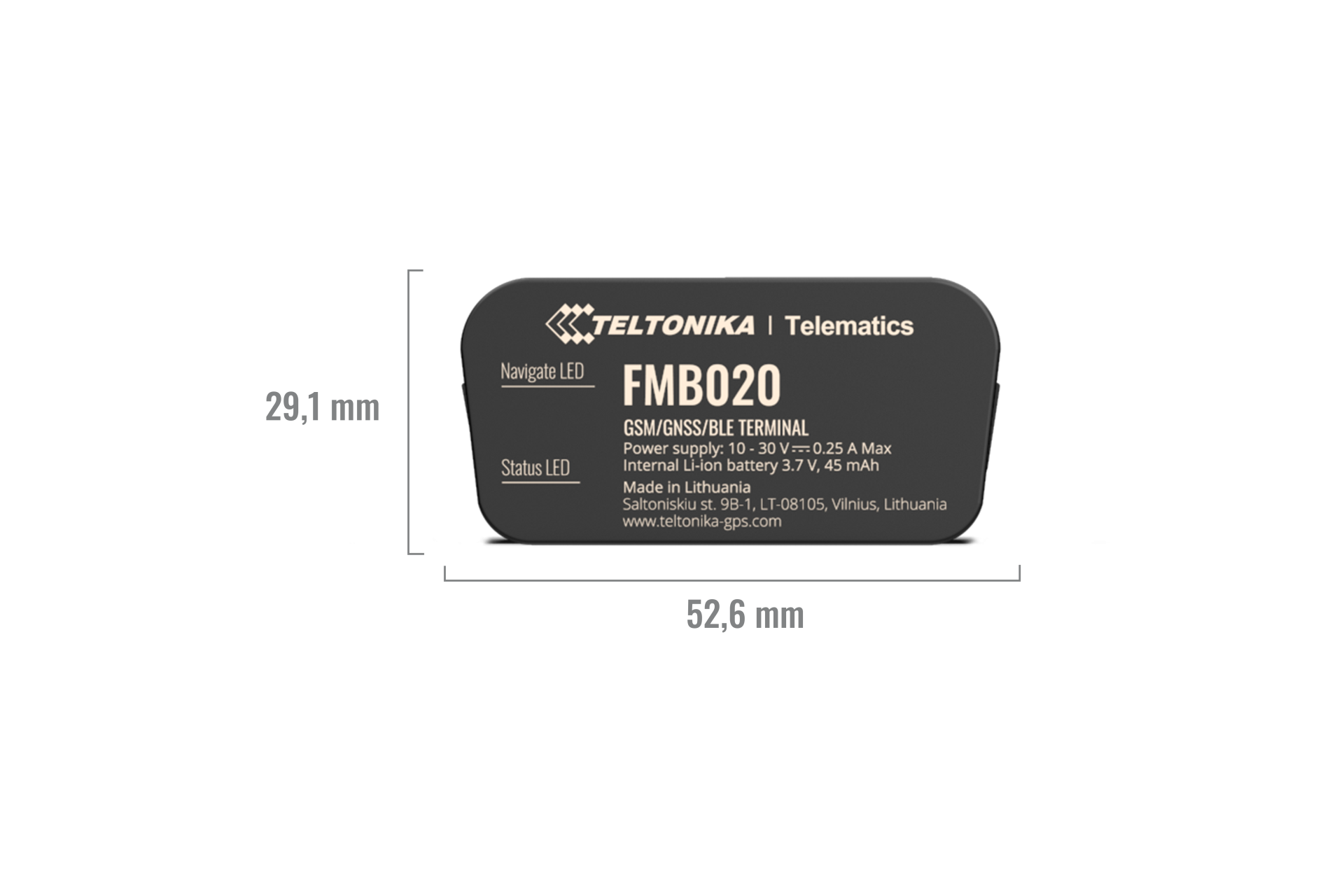

Dimensions
52.6 x 29.1 x 26 mm (L x W x H)
Weight
63 g
Operating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP41
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +60 °C
Battery storage temperature
-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
Connection
OBDII Socket
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 Micro-USB
LED indication
2 status LED lights
SIM
Nano-SIM
Memory
128MB internal flash memory
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update
FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)
SMS
Configuration, Events, Debug
GPRS commands
Configuration, Debug
Time Synchronization
GNSS, NITZ, NTP
Fuel monitoring
GNSS Fuel Counter
Ignition detection
Accelerometer, External Power Voltage
Regulatory
CE/RED, E-Mark, RCM, REACH, RoHS, SIRIM QAS, Declaration of IMEI assignment, Anatel
GET YOUR ORDER CODE
Standard package contains
Standard order codes
Custom order codes
