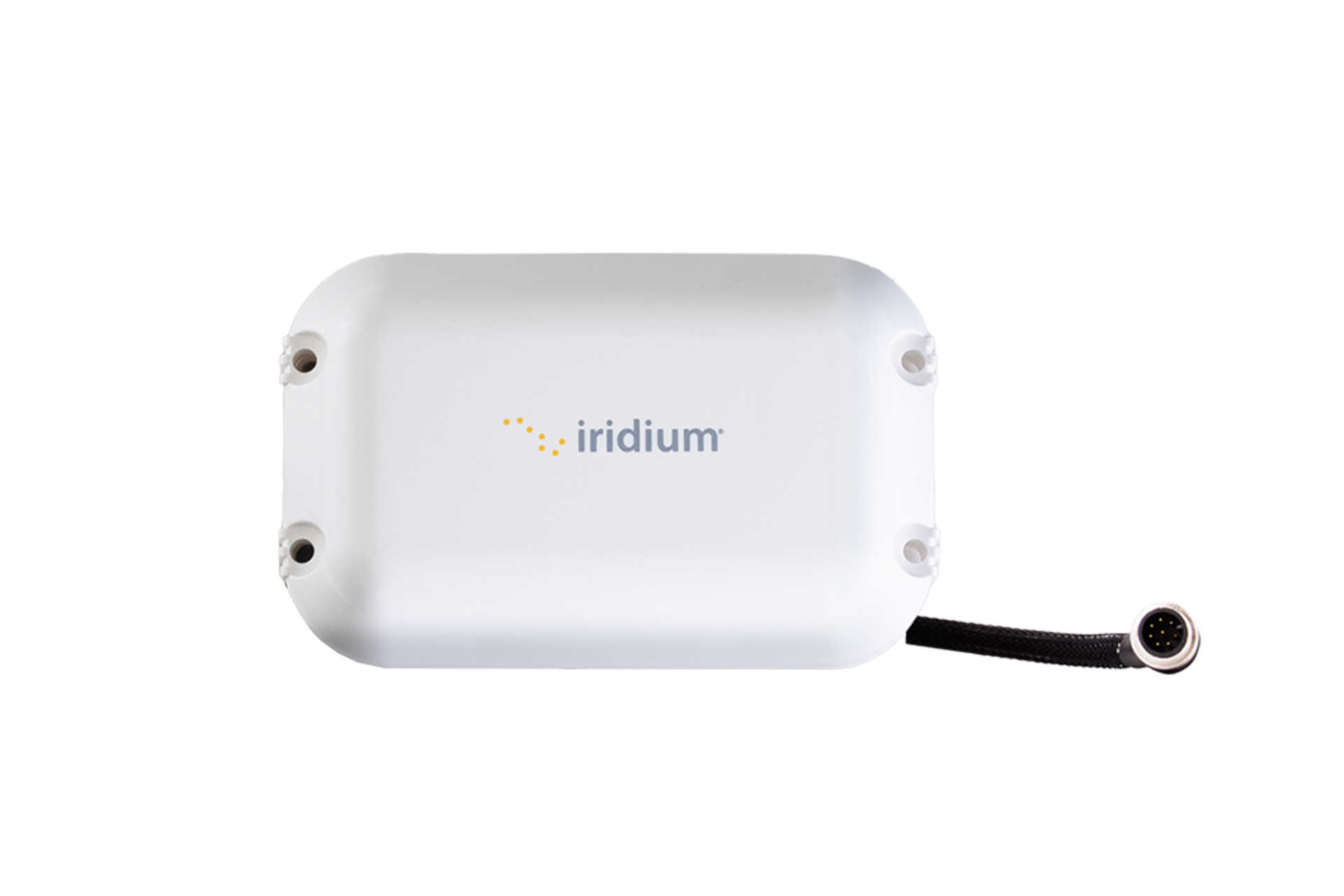

IRIDIUM EDGE®
The essential part of the Iridium Connected® Telematics Solution

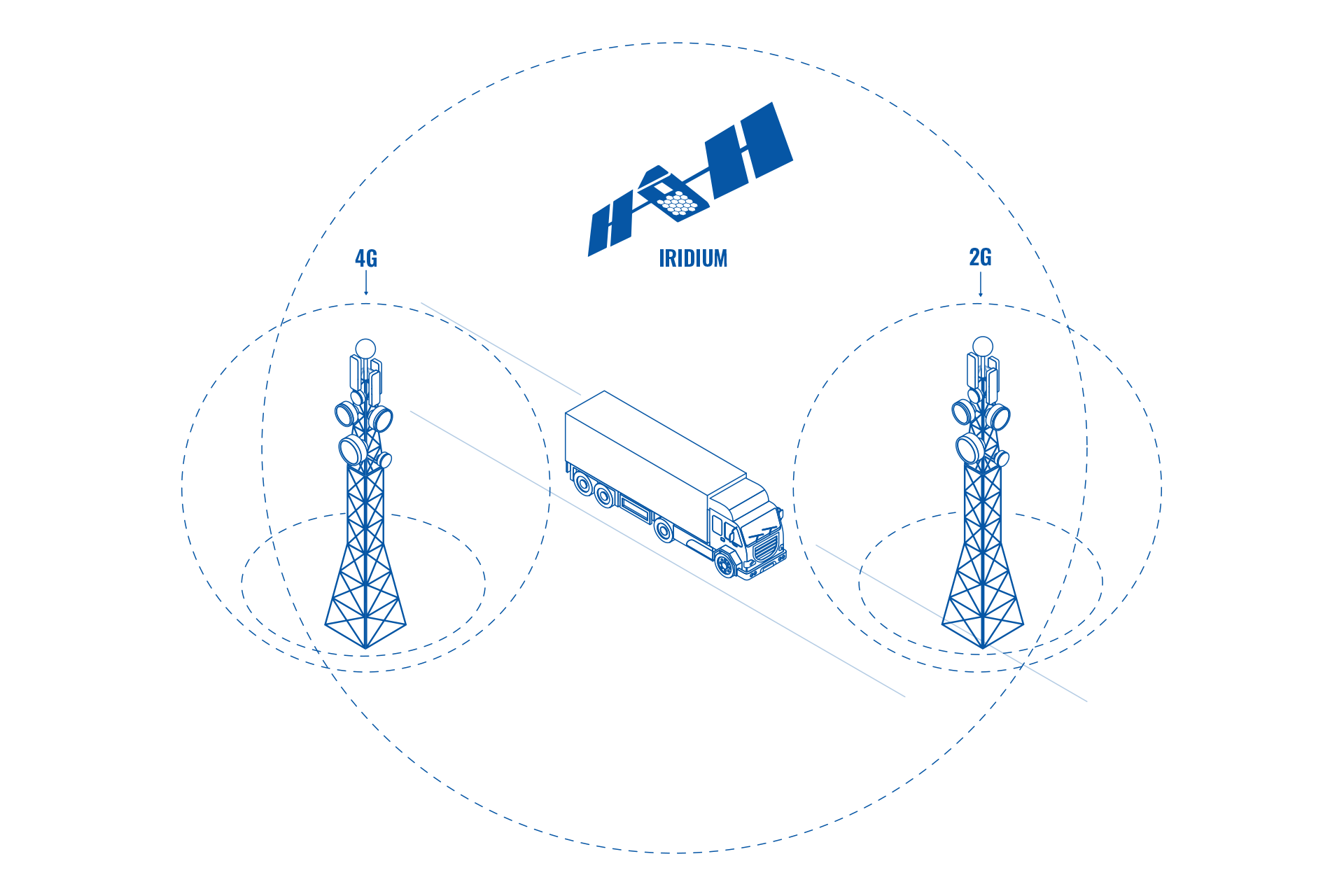

Complete mobile connectivity with satellite network as a fallback
RS232 is a viable choice in many scenarios due to its robustness, simplicity, and noise immunity

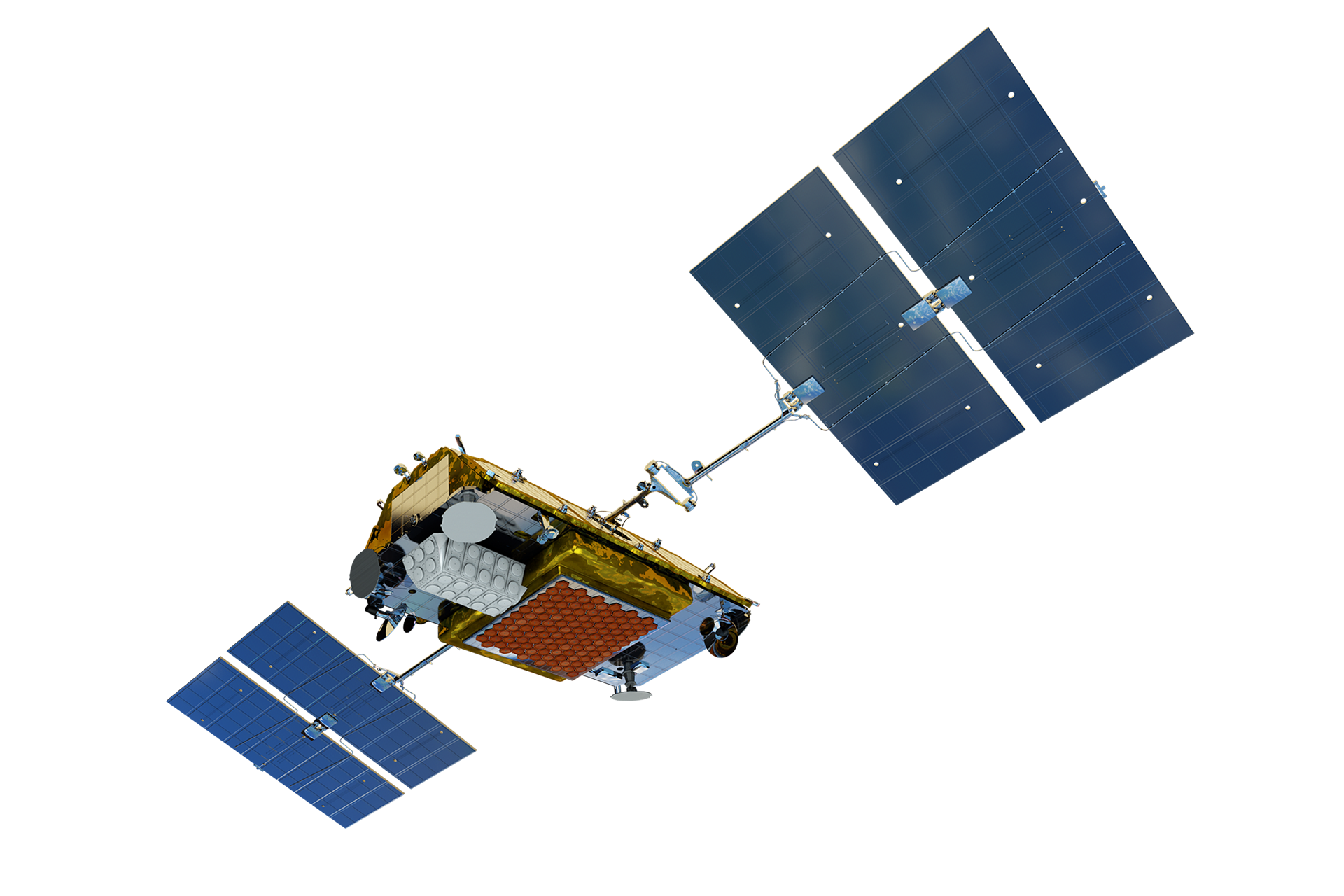

Iridium satellite network with pole-to-pole coverage
Superior protection against dust and resistance to water
Frequency
1616-1626.5iMHz
Message Size
One FMC125 and FMX640/641 message size forwarded to iridium EDGE is only 14 bytes
SBD Transceiver
Iridium 9602N
Antenna
Integrated Iridium® Certified Antenna
Operating Temperature Range:
Operating/Storage Temperature Range: -40C to 85
Vibration
SAE J1455, Section 4.10
Dimensions
130 x 80 x 30mm (LxWxH)
Connector
M12-8 pin male, terminated on 20cm Pigtail Cable
Installation Options
Pole, Screw, Tape
Ingress Protection Rating
IP67
Power Supply
(9-32V), SAE J1455 Load Dump Protected
Maximum Power
1.6W (Peak for Short Transmit Burst)
Low Power Modes
9 – 36 V
Reverse Polarity Protection
✓
RS232 AT Command Interface
✓
On / Off Control Lines
✓
Standard order codes
Custom order codes
