TELTONIKA DSM
Driver Safety and Monitoring solution – FMC650 and DSM camera to avoid accidents with visual monitoring functionality
PRODUCT USE CASES
View all

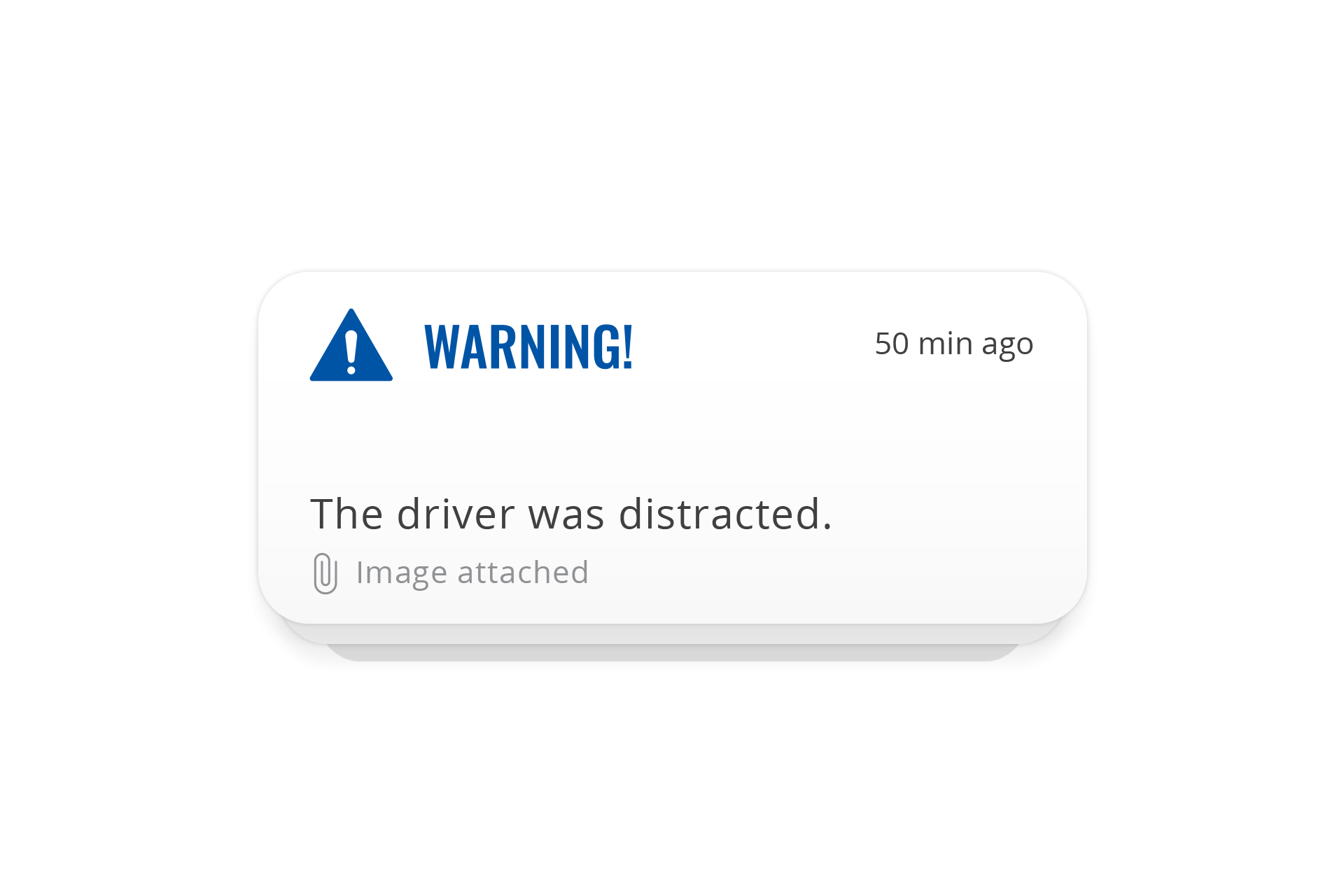

Notifying a driver immediately with a sound alert whenever any of the integrated warning conditions are detected, such as drowsiness, yawning, distraction, smoking, phone use, or not using seat belt

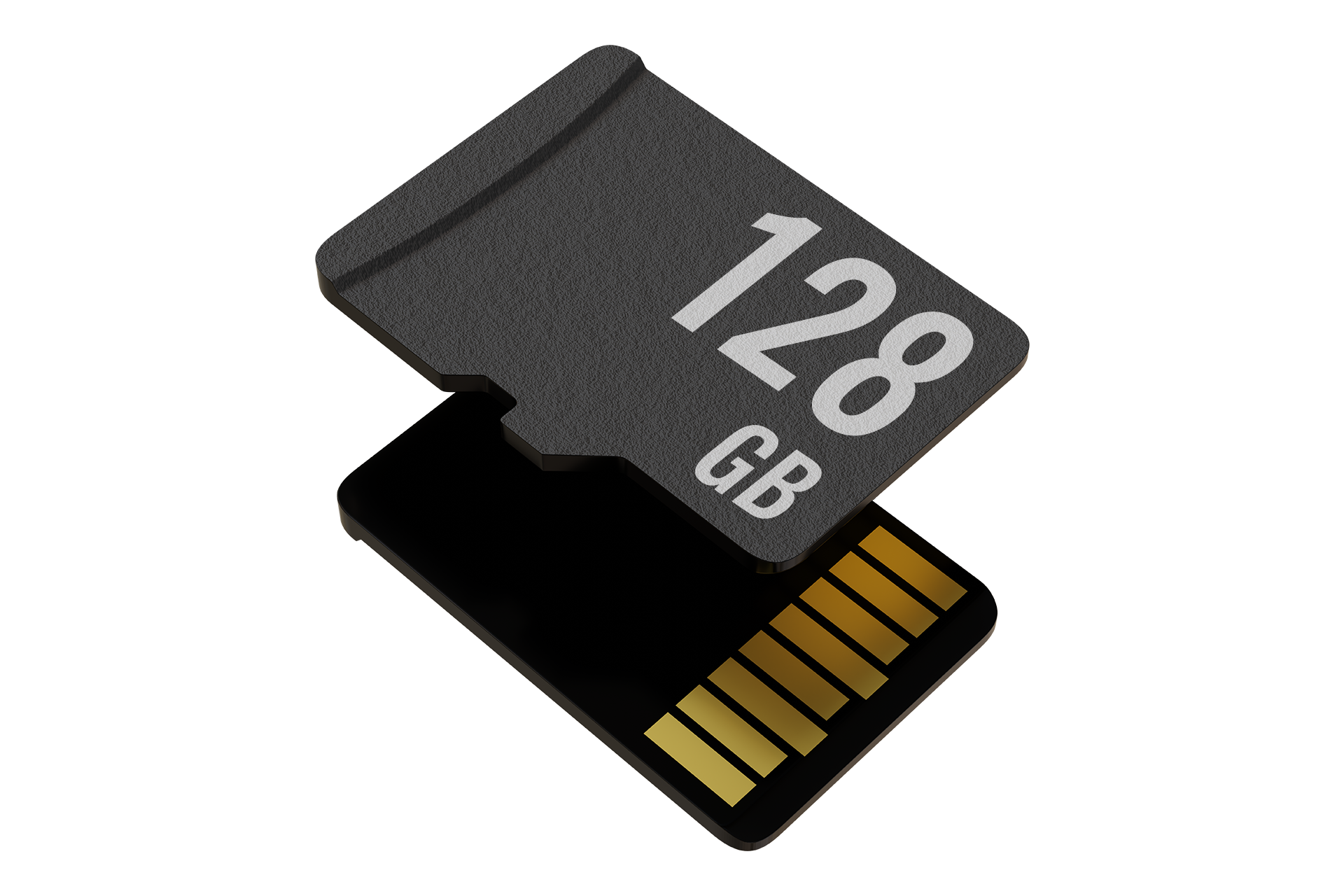

With up to 128 GB data storage, extensive videos are available to have full information what has happened before, during and after the events you are interested in

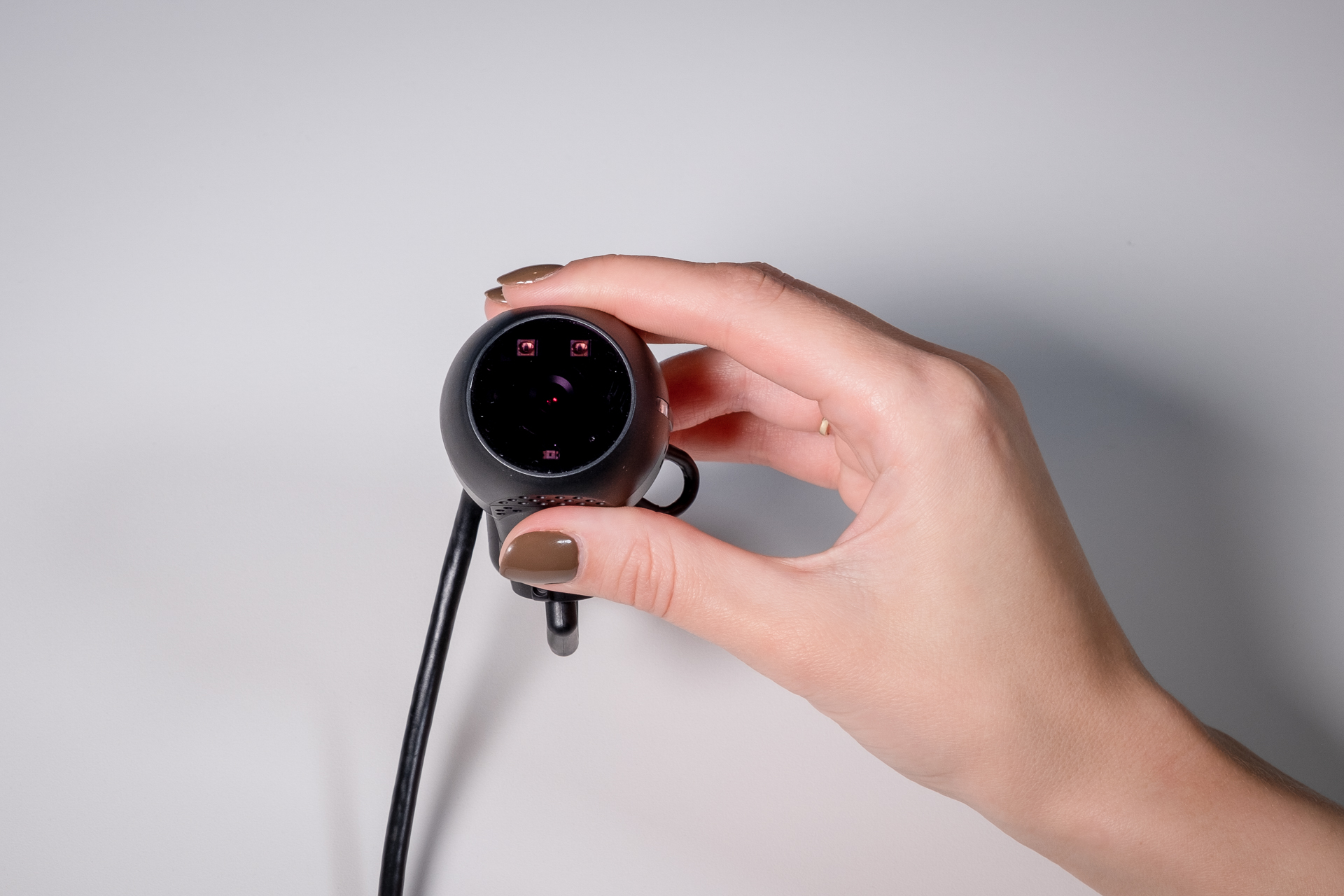

Small design provides a practical and effective solution for capturing footage while driving – positioned discreetly in the vehicle's A-pillar, it ensures that driver's front view remains clear
Get the requested photo or set periodic image sending to the server to track and analyse events in real time as well as monitor visual data, such as pictures of events
PRODUCT SPECIFICATIONS
Supported by
FMC650*
* To connect with FMC650 devices, an additional RJ45 cable must be purchased.
GNSS
Built-in (GPS, GLONASS, QZSS)
Dimensions
Camera: 48.7 mm x 56.18 mm x 78.52 mm / Main connection box: 172 mm x 84.65 mm x 27 m
Camera resolution
720p@30fps, HDR
SD card
Up to 128 GB micro SD card, 64 GB (included). 64 GB SD card Approx recording time 24 Hours
Infared
2x IR LED
Cable length
Main cable 3.5 m "Split cable"
Speaker/Microphone
Yes
Power consumption
Max. 8.4 W (12 V/24 V)
Operating temperature
-20 °C to +70 °C
LED indication
Indicator (LED) Red/Green dual LED, Operating status
USB
USB Type-C for calibration via PC
CAN
CAN 2.0 (option for DSM to detect speed from CAN line)
RS232
Indicator TX/RX (for communication with FMX640 devices)
Using FMC650 you can request a photo from DSM, or set periodical image sending to the server
Drowsiness
When the driver closes his/her eyes for a certain period. If the driver closes his/her eyes again within 30 seconds
Distraction
When the driver looks outside of the warning range below. If the driver remains distracted for a certain period
Yawning
When the driver yawns for 3 seconds twice within 1 minute
Smoking
When the driver smokes for a certain period
Phone use
When the driver talks over the phone for a certain period (Every 30 seconds)
Seat belt
When the driver doesn’t fasten the seat belt over 10 km/h
Driver ID
Detect driver face (store max 200 IDs)
Certificates
FCC ir KC ( Korea Certificate )
