Robust IP67-rated casing provides trusted protection against dust and resistance to water

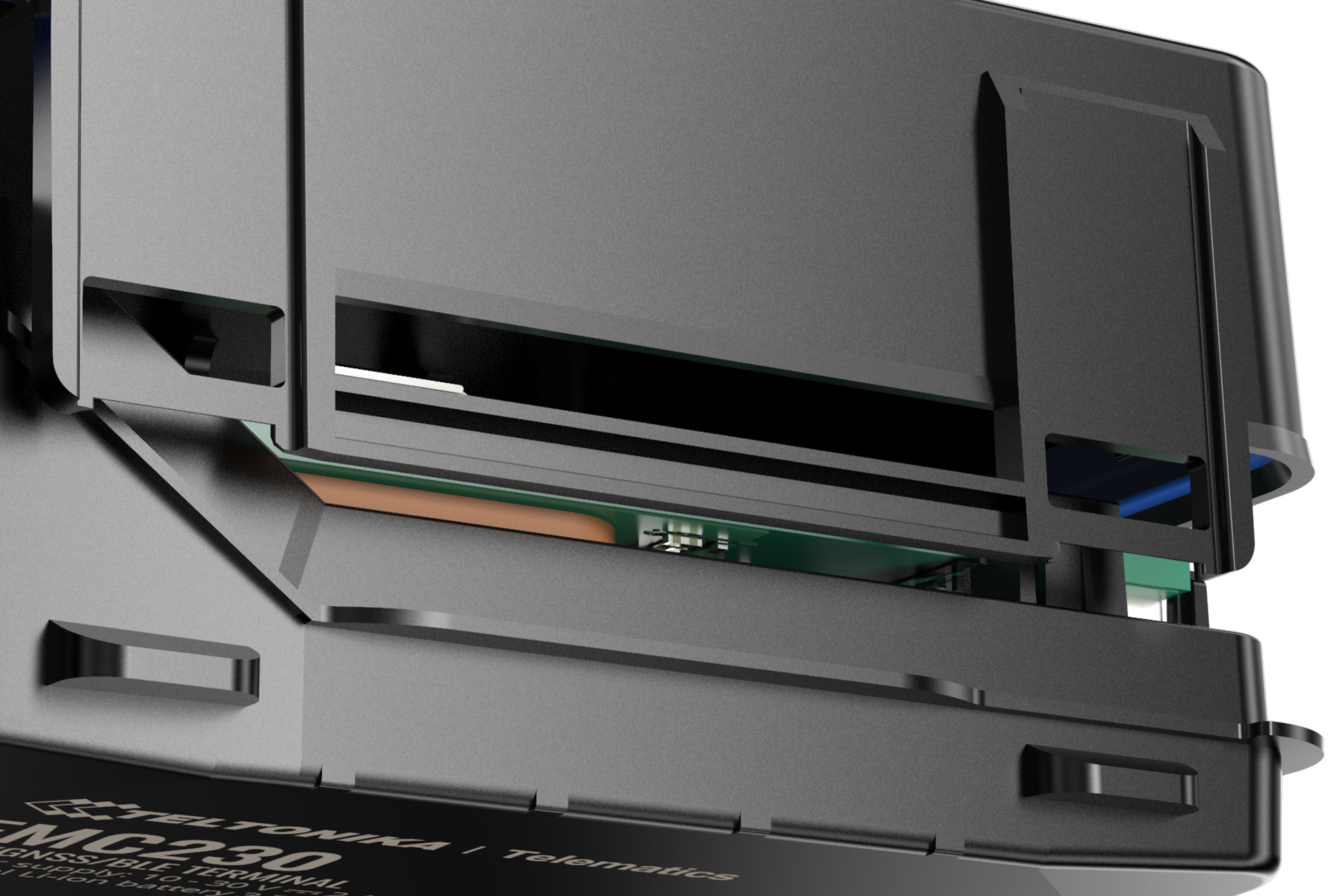

Innovative click-type two-phase closing with no additional tools needed
Standard and U-type cable options available to ensure easy and fast installation
Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors to monitor temperature, humidity, magnet detection, and movement
CHOOSE THE MODEL FOR YOU
PRODUCT SPECIFICATIONS
Name
FMC230-MBIB0: MeiG SLM320-E with Teltonika TM2500
FMC230-MCIB0: MeiG SLM320-LA with Teltonika TM2500
Technology
LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH® LE
GNSS
GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver
33 tracking channel
99 acquisition channel
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Hot start
< 1 s
Warm start
< 25 s
Cold start
< 35 s
Technology
LTE Cat 1, GSM
2G bands
FMC230-MBIB0: GSM: B2/B3/B5/B8
FMC230-MCIB0: GSM: B2/B3/B5/B8
4G LTE bands
FMC230-MBIB0:
LTE FDD: B1/B3/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
FMC230-MCIB0:
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
LTE-TDD: B40
Data transfer
LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL)
GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Data support
SMS (text/data)
Input voltage range
10 - 30 V DC with overvoltage protection
Internal Back-up battery
170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse
3A, 125V
Power consumption
At 12V < 3 mA (Ultra Deep Sleep)
At 12V < 5 mA (Deep Sleep)
At 12V < 16 mA (Online Deep Sleep)
At 12V < 18 mA (GPS Sleep)
At 12V < 33 mA (nominal with no load)
At 12V < 2A Max. (with full Load / Peak)
Specification
4.0 + LE
Supported peripherals
Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support support
Dimensions
70,5 x 67,0 x 25,6 mm (L x W x H)
85,0 x 67,0 x 25,6 mm (L x W x H) (length with connector socket)
Weight
79 g
Operating temperature (without battery)
-20 °C to +85 °C
Storage temperature (without battery)
-20 °C to +85 °C
Operating temperature (with battery)
-20 °C to +60 °C
Storage temperature (with battery)
-20 °C to +45 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP67
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +60 °C
Battery storage temperature
-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
Digital Inputs
3
Negative Inputs
1 (Digital Input 2)
Impuls Inputs
2 (Digital Input 1, Digital Input 2)
Digital Outputs
3
Analog Inputs
2
CAN Adapter Inputs
1
1-Wire
1
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 Micro-USB
LED indication
2 status LED lights
SIM
Micro-SIM or eSIM
Memory
128MB internal flash memory
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Jamming
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update
FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)
SMS
Configuration, Events, DOUT control, Debug
GPRS commands
Configuration, DOUT control, Debug
Time Synchronization
GNSS, NITZ, NTP
Fuel monitoring
LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detection
Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
Regulatory
CE-RED, E-mark, RCM, Anatel, TRA, CITC, REACH, RoHS, ICASA
