GH5200
Autonomous 2G tracker for personal security and workforce management
Supporting up to 5 call/SMS recipients allows to transmit a text message or initiate a call instantly when immediate help is needed

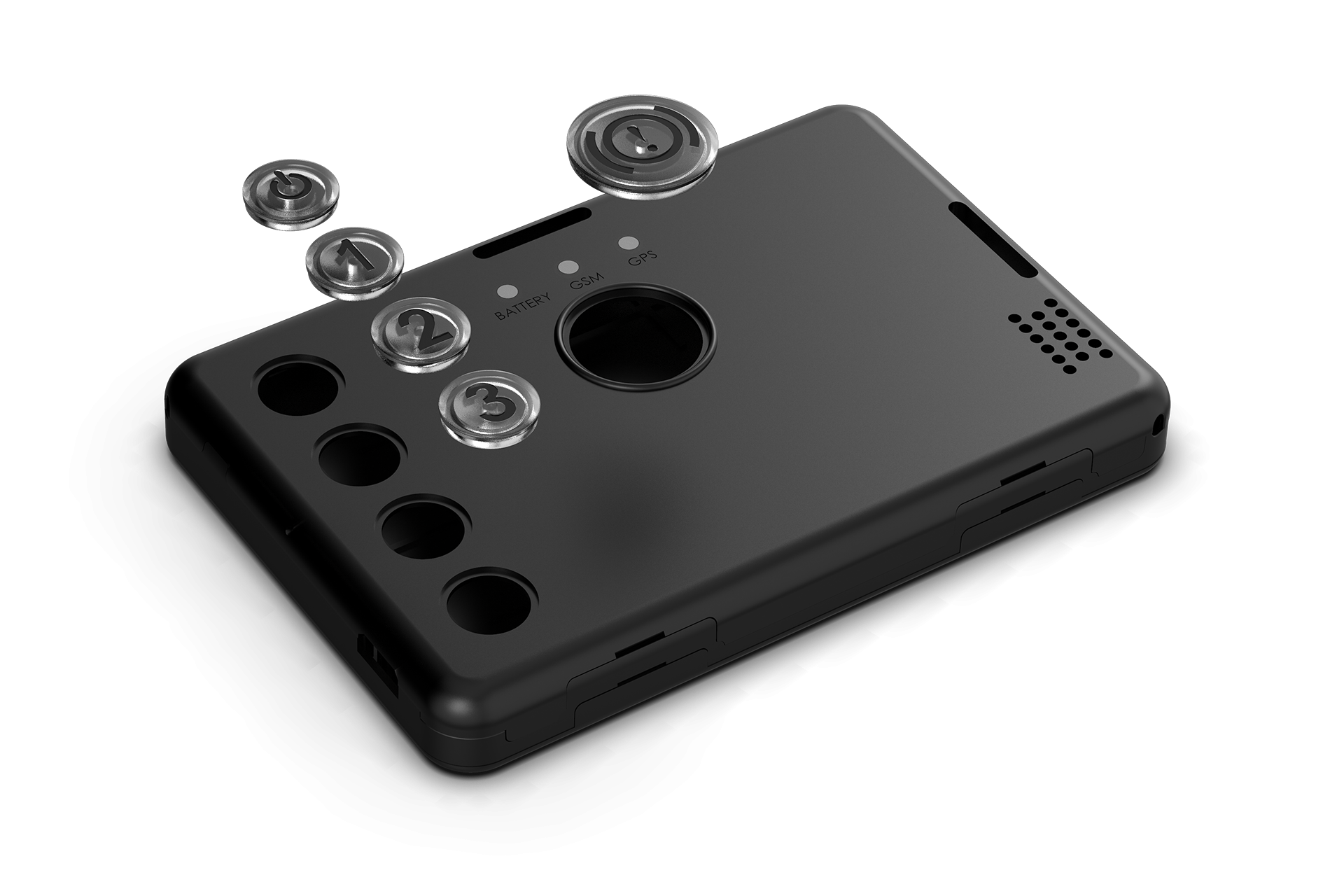

5 programmable buttons can be used for amber alert, action-on-call, on-demand tracking and many other events
Special pre-programmed scenarios to ensure personal safety of lone workers and vulnerable people

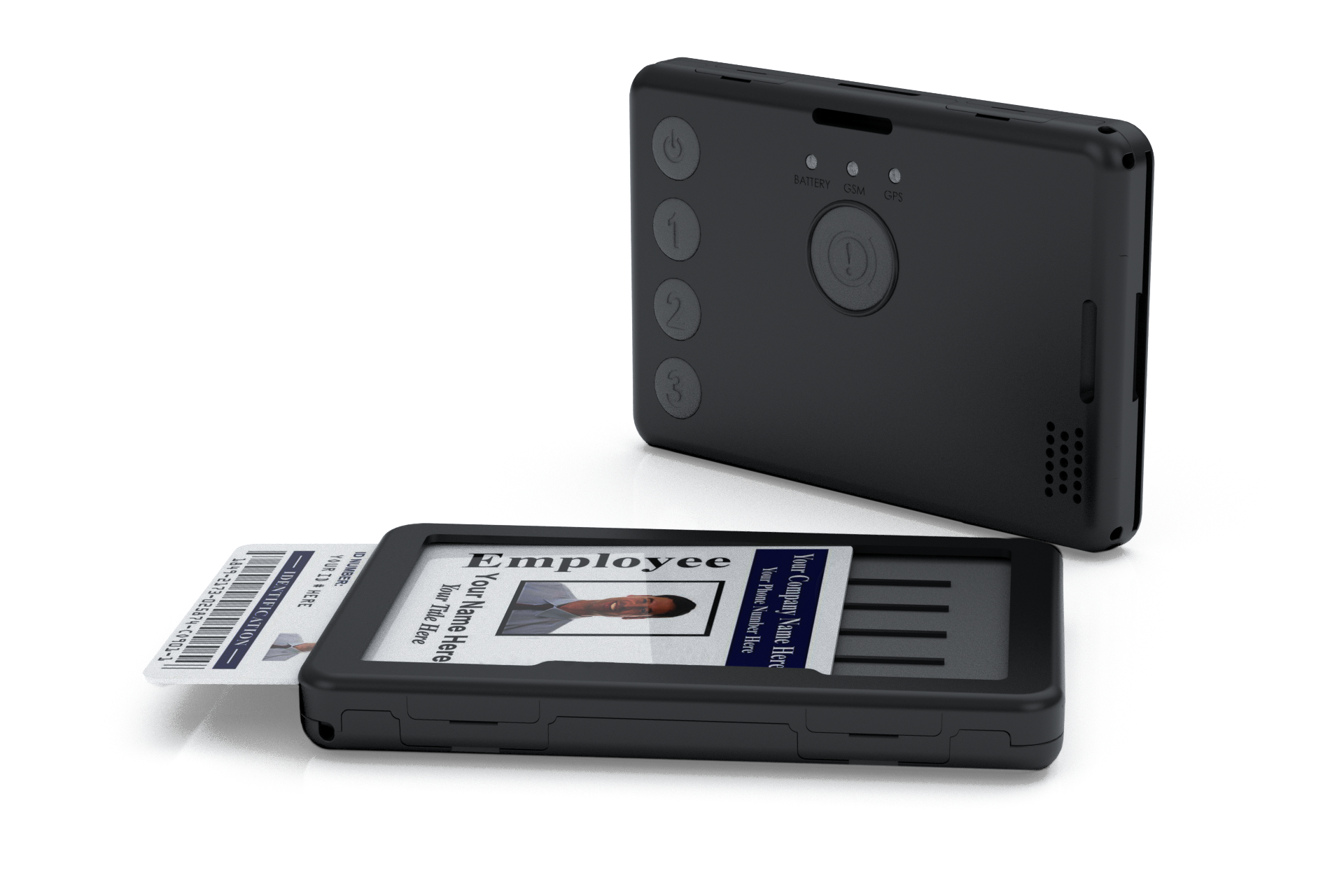

Slim design for convenient everyday use as a ID card holder that can be put on a neck or a belt
PRODUCT SPECIFICATIONS
Name
Teltonika TM2500
Technology
2G (GSM/GPRS)/GNSS/BLUETOOTH ® LE
GNSS
L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS*, QZSS*, DGPS*, AGPS*
* Optional modes available with custom firmware applications, for more information contact your sales manager.
Receiver
33 tracking channels
99 acquisition channels
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Hot start
< 1 s
Warm start
< 25 s
Cold start
< 35 s
Technology
GSM/GPRS
2G bands
Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer
GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)
Data support
SMS (text/data)
Charging voltage
5V DC with over-voltage protection
Internal Back-up battery
1050mAh rechargeable Li-Ion battery, 3.7V, 3.885Wh
Specification
4.0 + LE
Dimensions
95 x 64 x 11 mm (L x W x H)
Weight
80 g
Operating humidity
under 85% non-condensing
Ingress Protection Rating
IP30
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +58 °C
Battery storage temperature
-20 °C to +60°C for 1 month
-5 °C to +30°C for 6 months
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 Micro-USB
LED indication
3 LED indicators
Buttons
5 configurable buttons
SIM
Micro-SIM
Memory
128MB internal flash memory
Sensors
Accelerometer
Scenarios
Alarm button, Man-Down Detection, Home Zone, Amber Alert, Indoor Tracking, Movement/No Movement Events, 50 Manual Geofence zones, Over Speeding, Action On Call feature, Real Time tracking, Smart Algorithm of GPRS data sending for GPRS traffic saving, Asset Tracking, Power On/Off event, Event on a Pressed Button, On Demand tracking via button press, Beacon On Demand tracking, Xiaomi Mi Band 2 heart rate measurement and heart rate range exit alerts, Race Mode
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep, Low Power Mode
Configuration and firmware update
FOTA WEB (cloud based solution), Teltonika Configurator (USB, Bluetooth® wireless technology), Configuration through SMS
SMS
Configuration, Events, Debug
GPRS commands
Configuration, Debug
Time Synchronization
GNSS, NITZ, NTP
Regulatory
CE/RED, EAC, Anatel, UKCA, RoHS, REACH
