PRODUCT USE CASES
View all
Define your own data sending scenarios by the type of the asset you are tracking or a dedicated use case

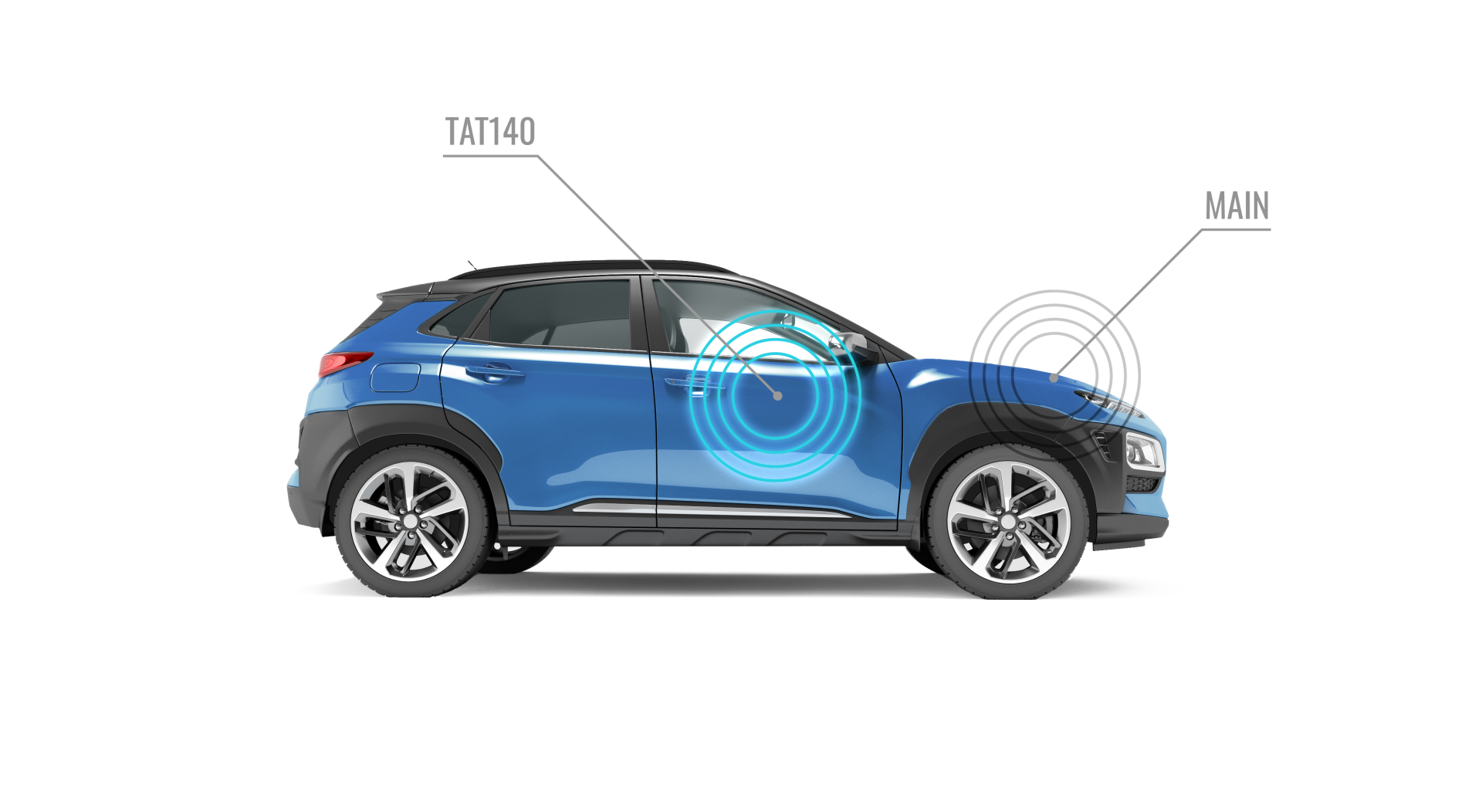

Quick set-up with Teltonika vehicle tracking devices to use TAT140 as a backup tracker for your transport’s maximum safety
Various usage scenarios to increase battery lifetime depending on your needs

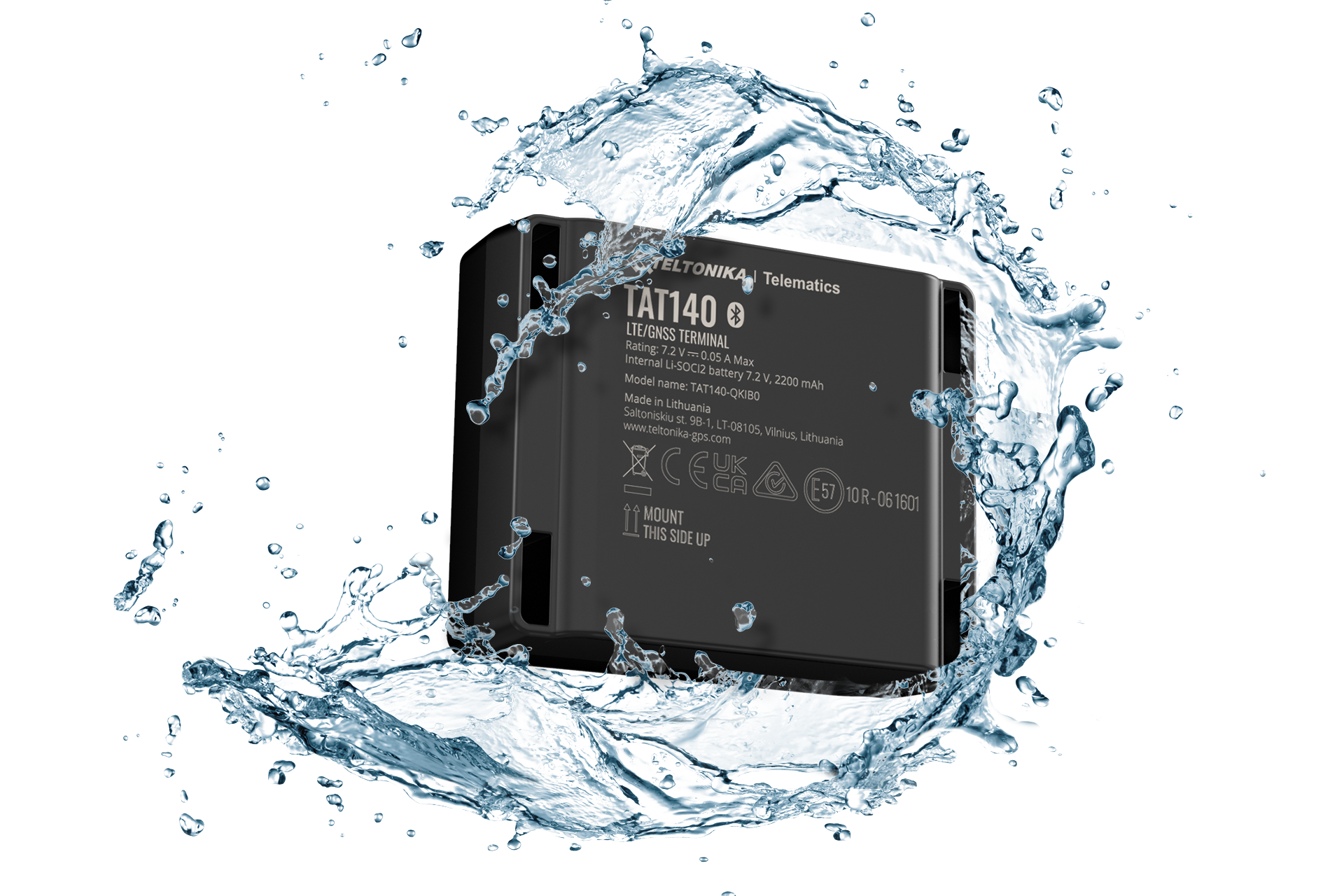

Fast device set-up without any wires and protection in extreme weather conditions with the IP68-rated casing
CHOOSE THE MODEL FOR YOU
PRODUCT SPECIFICATIONS
Name
TAT140-QJIBO: Quectel EG915U-EU with Teltonika TM2500
TAT140-QKIB0: Quectel EG915U-LA with Teltonika TM2500
Technology
LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH ® LE
GNSS
L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS*, QZSS*, DGPS*, AGPS*
* Optional modes available with custom firmware applications, for more information contact your sales manager.
Receiver
33 tracking channels
99 acquisition channels
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Technology
LTE Cat 1, GSM
2G bands
TAT140-QJIBO: EG915U-EU GSM: B2/B3/B5/B8
TAT140-QKIB0: EG915U-LA GSM: B2/B3/B5/B8
4G LTE bands
TAT140-QJIBO: EG915U-EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28
TAT140-QKIB0: EG915U-LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66
Data transfer
LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL);
GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit power
Class 4 for GSM850/900: 33±2dBM
Class 1 for GSM1800/1900: 30±2dBM
Class 3 for LTE-FDD: 23±2dBM
Data support
SMS (TEXT), Network protocols (TCP,UDP,TLS, EGTS, MQTT**)
** Optional protocols available with custom firmware applications, for more information contact your sales manager.
Internal battery
Extremely low self-discharge Li-SOCl2 swappable, non-rechargeable battery, 7,2V 2200mAh
Battery life
Up to 5 years (when used as a backup tracker only via Bluetooth®)*
Up to 4 years (1 LBS – cell towers report per day)*
Up to 3 years (1 GNSS report per day)*
*Battery life estimates are influenced by many factors such as outdoor temperature, frequency of reporting, installation, and orientation of the device, network coverage, additional functionalities (like Bluetooth® scanning enabled) and more.
Specification
4.2 + LE
Supported peripherals
EYE Sensors, EYE Beacons (recovery mode only), Universal Bluetooth® LE sensors support

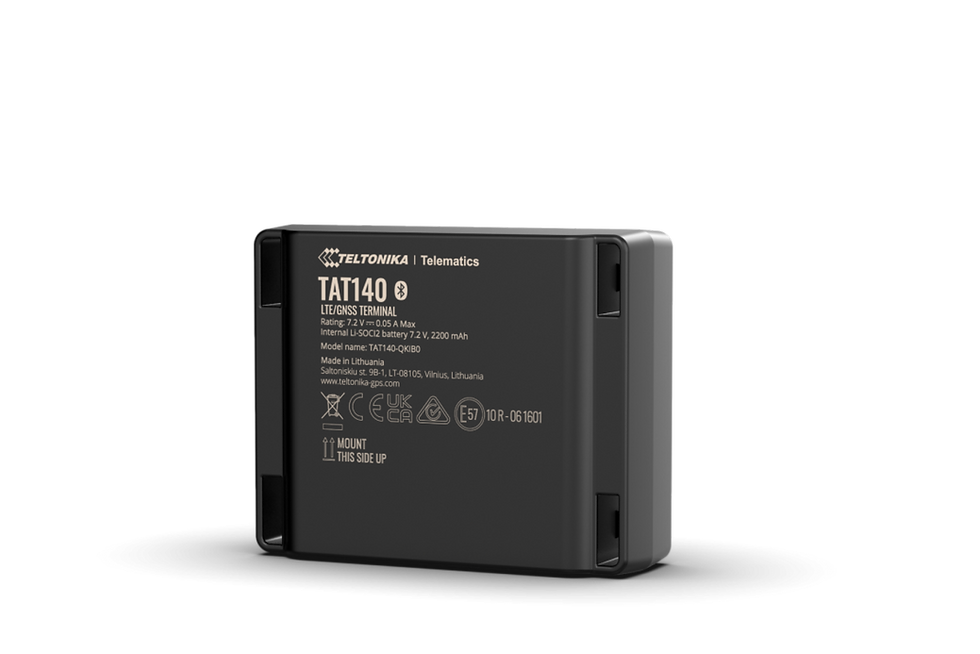

Dimensions
78 x 63 x 28 mm (L x W x H)
Weight
115g (with 2 cells battery)
Operating temperature (with battery)
-35 °C to +75 °C
Storage temperature (with battery)
-40 °C to +85 °C (Recommended max. 30°C)
Operating temperature (without battery)
-20 °C to +60 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP68
Battery discharge temperature
-60 °C to +85 °C
Battery storage temperature
Recommended max. 30°C
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 Micro-USB
LED indication
1 status LED light
SIM
Micro-SIM
Memory
128MB internal flash memory
Sensors
Accelerometer
Scenarios
Accelerometer wake up, GNSS, Bluetooth ® LE sensors support, Recovery mode, Periodic tracking on stop / on move, Scheduler with time zones, Backup tracking, Static navigation, Lost Bluetooth® LE sensors
Sleep modes
Single custom sleep mode
Configuration and firmware update
FOTA WEB, Teltonika Configurator (USB)
SMS
Configuration, Events, Debug
GPRS commands
Configuration, Debug
Time Synchronization
GNSS, NITZ, NTP
Regulatory
CE/RED, E-Mark, RCM, UKCA, CITC, TRA, RoHS
GET YOUR ORDER CODE
Standard package contains
Standard order codes
Custom order codes
