TAT240
Tamper-proof asset tracker with 4G LTE Cat 1 connectivity
PRODUCT USE CASES
View all
Reliable magnetic tamper detection ensures the topmost safety of your assets
Define your own data sending frequency based on whether your assets are moving

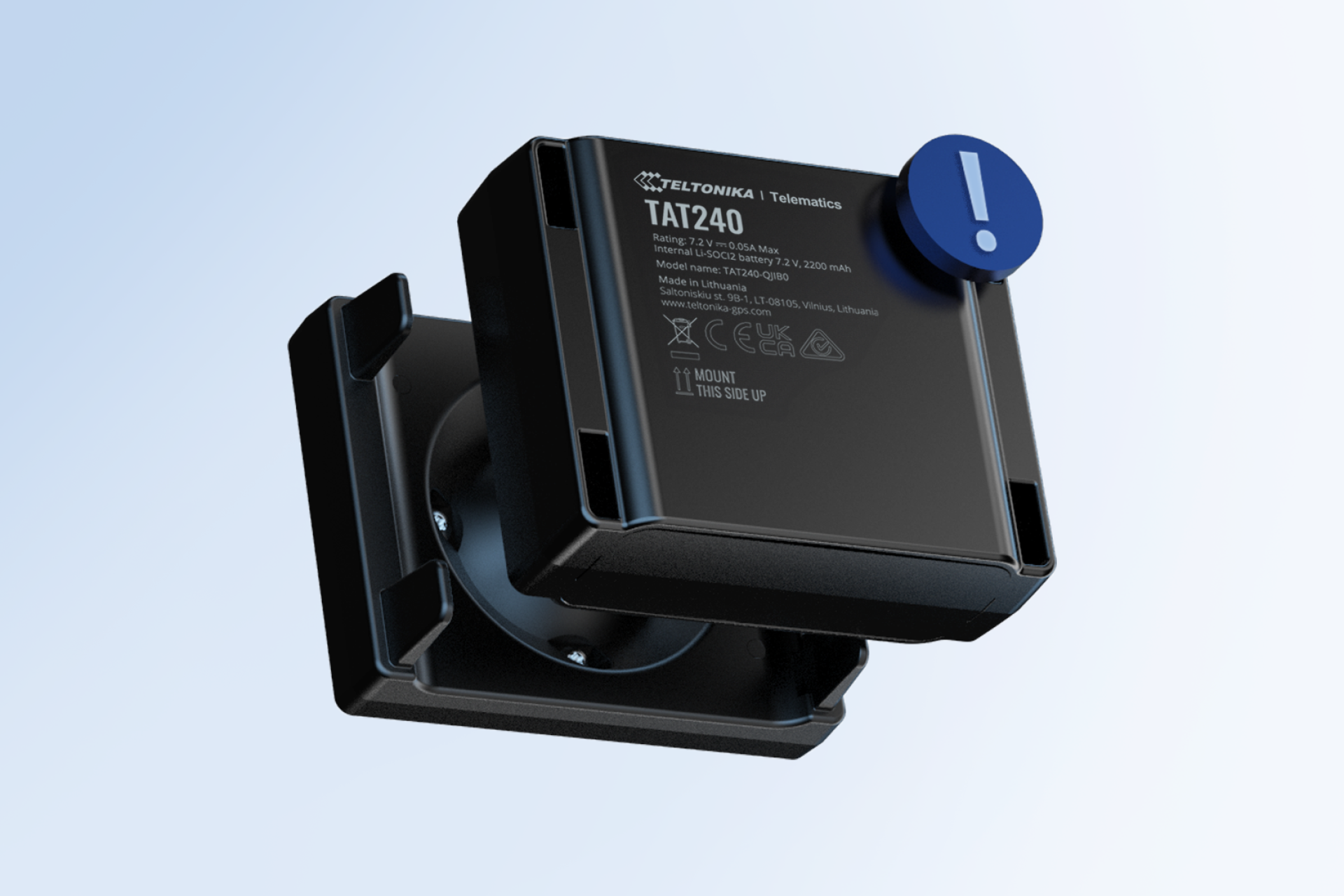

Attach the device firmly and effortlessly with the included magnetic mounting holder

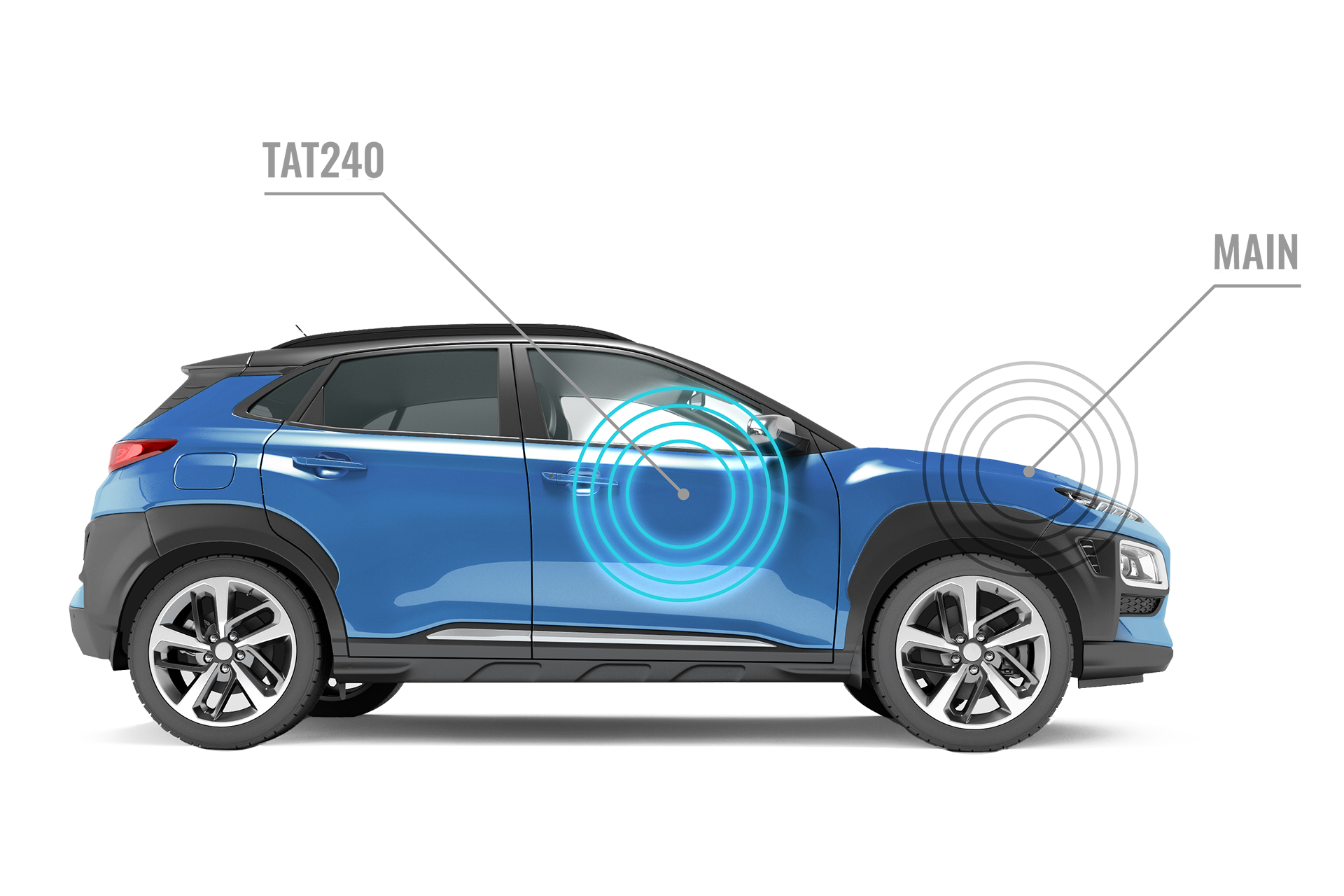

Ideal to be used as a backup tracker – easy to hide anywhere in a vehicle thanks to a compact size, while sleep mode protects against detecting tracker by thieves
PRODUCT SPECIFICATIONS
Name
TAT240-QJIB0: Quectel EG915U-EU with Teltonika TM2500
TAT240-QKIB0: Quectel EG915U-LA with Teltonika TM2500
Technology
LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH® LE
GNSS
L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS*, QZSS*, DGPS*, AGPS*
* Optional modes available with custom firmware applications, for more information contact your sales manager.
Receiver
33 tracking channel
99 acquisition channel
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
2G bands
TAT240-QJIB0: EG915U-EU GSM: B2/B3/B5/B8
TAT240-QKIB0: EG915U-LA GSM: B2/B3/B5/B8
4G LTE bands
TAT240-QJIB0: EG915U-EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28
TAT240-QKIB0: EG915U-LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66
Data transfer
LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)
GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit power
Class 4 for GSM850/900: 33±2dBM
Class 1 for GSM1800/1900: 30±2dBM
Class 3 for LTE-FDD: 23±2dBM
Data support
SMS (TEXT), Network protocols (TCP,UDP,TLS, EGTS, MQTT**)
** Optional protocols available with custom firmware applications, for more information contact your sales manager.
Internal battery
Extremely low self-discharge Li-SOCl2 swappable, non-rechargeable battery, 7,2V 2200mAh
Battery life
Up to 5 years (when used as a backup tracker only via Bluetooth®)*
Up to 4 years (1 LBS – cell towers report per day)*
Up to 3 years (1 GNSS report per day)*
*Battery life estimates are influenced by many factors such as outdoor temperature, frequency of reporting, installation, and orientation of the device, network coverage, additional functionalities (like Bluetooth® scanning enabled) and more.
Specification
4.0 + LE
Supported peripherals
EYE Sensors, EYE Beacons (recovery mode only), Universal Bluetooth® LE sensors support
Dimensions
78 x 63 x 28 mm (L x W x H)
Weight
115 g (with 2 cells battery)
Dimensions
77,5 x 61,5 x 27,5 mm
Material
PC + ABS
Operating temperature
-40 °C to +80 °C
Flame Classifications UL94
V-0
Magnets
4 x Neodymium magnets, 20 x 7 mm, strength: min. 11 kg, nickel-plated, max. operating temp. +80 °C
Operating temperature (with battery)
-35 °C to +75 °C
Storage temperature (with battery)
-40 °C to +85 °C (Recommended max. 30°C)
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP68
Battery discharge temperature
-60 °C to +85 °C
Battery storage temperature
Recommended max. 30°C
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 Micro-USB
LED indication
1 status LED light
SIM
Micro-SIM
Memory
128MB internal flash memory
Sensors
Accelerometer
Scenarios
Enhanced tamper detection, accelerometer wake up, GNSS, Bluetooth® sensor support, Recovery mode, Periodic tracking on stop / on move, Scheduler with time zones, Backup tracking, Static navigation, Lost BLE sensor
Sleep modes
Single custom sleep mode
Configuration and firmware update
FOTA WEB, Teltonika Configurator (USB)
SMS
Configuration, Events, Debug
GPRS commands
Configuration, Debug
Time Synchronization
GNSS, NITZ, NTP
Regulatory
CE/RED, E-Mark, RCM, UKCA, RoHS, CITC, TRA
