FTC921
Next-generation high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy
PRODUCT USE CASES
View all
Fleet Telematics (FT) platform offers advanced firmware and hardware, taking your tracking experience to the next level
More precise GNSS with up to 41 visible satellites, enabling considerably higher tracking quality for location-based services
Optimised sleep modes allow the device to operate on its own for an extended period of time and significantly reduce vehicle battery drainage
Extended integration versatility for seamless use in e-motorcycles, e-mopeds, e-rickshaws, and other electric vehicles
PRODUCT SPECIFICATIONS
Model name
FTC921-QJAB0
GNSS
GPS, GLONASS, GALILEO, BEIDOU
Receive type
135 tracking/acquisition channels
Tracking sensitivity
-165 dBM
Position Accuracy
< 1.8 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
2G bands
GSM: B2/B3/B5/B8
4G LTE bands
LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28
Data transfer
LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)
GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit power
Class 5 for GSM850/900: 30±5dBM
Class 3 for GSM1800/1900: 29±5dBM
Class 3 for LTE-FDD: 26±5dBM
Data support
SMS (TEXT, PDU), Network protocols (TCP)
Codec support
Codec 8 Extended

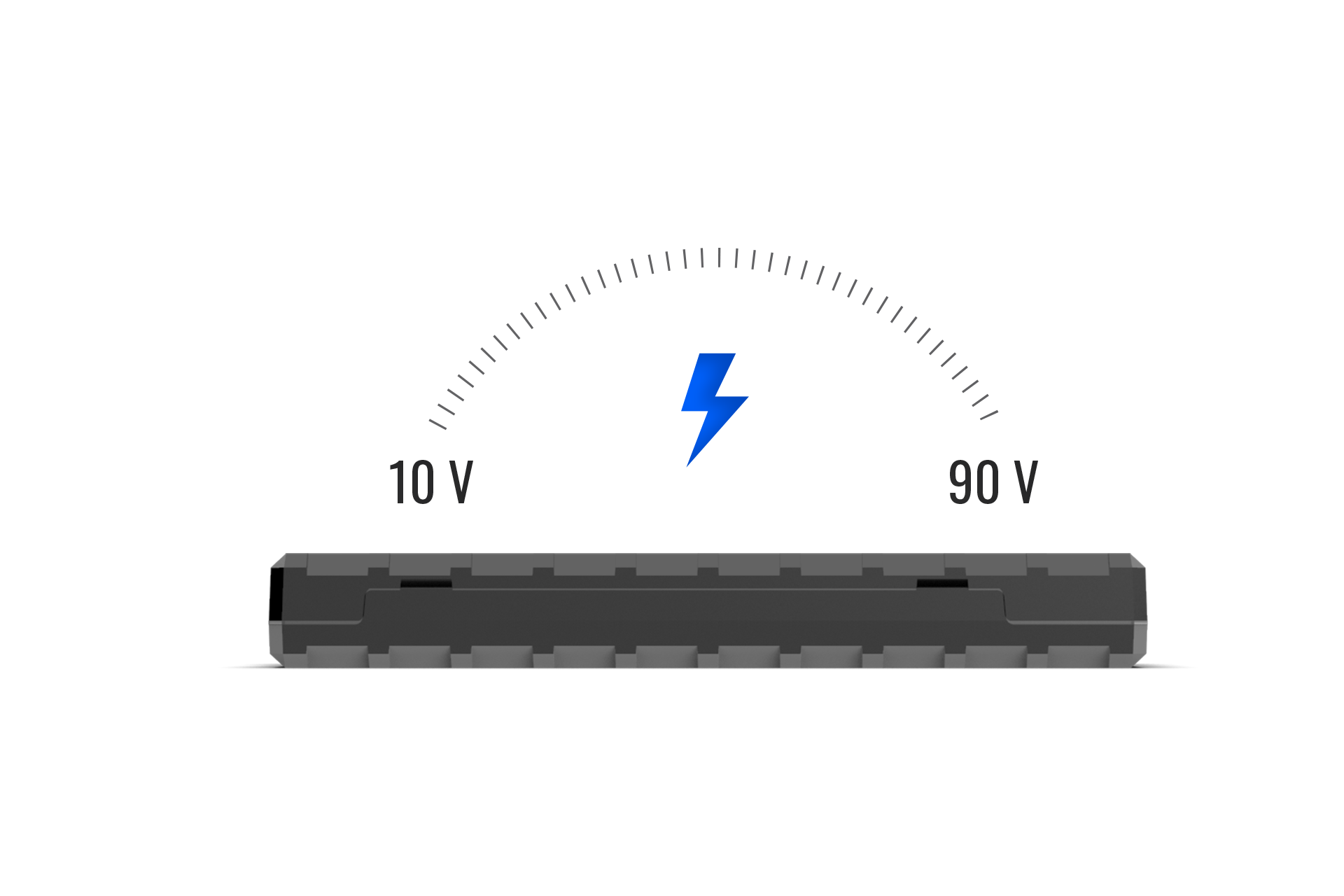

Input voltage range
10–90 V
Internal Back-up battery
170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse
3A, 125V
Power consumption
TBA
At 12V < 25 mA (nominal with no load)
At 12V < 0.25A Max (with full Load/Peak)
Dimensions
93 x 43 x 12.5 mm (L x W x H)
Weight
65 g
Operating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Operating temperature (with battery)
0 °C to +40 °C
Storage temperature (with battery)
-20 °C to +60 °C
Operating humidity
65 ± 20% non-condensing
Ingress Protection Rating
IP41
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +60 °C
Battery storage conditions
65 ± 20%RH
-10 °C to +50 °C for 1 month
-10 °C to +35 °C for 3 months
0 °C to +30 °C for 1 year
Digital Inputs
1
Digital Outputs
1
Analog Inputs
1
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
USB 2.0 USB Type-C
LED indication
2 status LED lights
SIM
Nano-SIM
Memory
128MB internal flash memory
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, Excessive idling detection, Unplug detection, Crash Detection, Trip
Sleep modes
Deep Sleep
Configuration and firmware update
FOTA WEB, Teltonika Configuration Tool (TCT)
SMS
Configuration, DOUT control, Debug
GPRS commands
Configuration, DOUT control, Debug
Time Synchronization
GNSS, NITZ, NTP
Ignition detection
Digital Input 1, Accelerometer, External Power Voltage
Regulatory
FTC921-QJAB0: CE/RED, E-Mark, RCM (Planned, not started.), RoHS, REACH, Pulse 5b
