Get crucial CAN parameters and create a custom parameter database to enhance the operational efficiency of your e-mobility fleet
Solid 10-97 V power supply allows device integration in e-bikes, forklifts, shuttle cars, utility machinery, and other electric equipment
Robust yet small IP67-rated casing provides trusted protection against dust and resistance to water

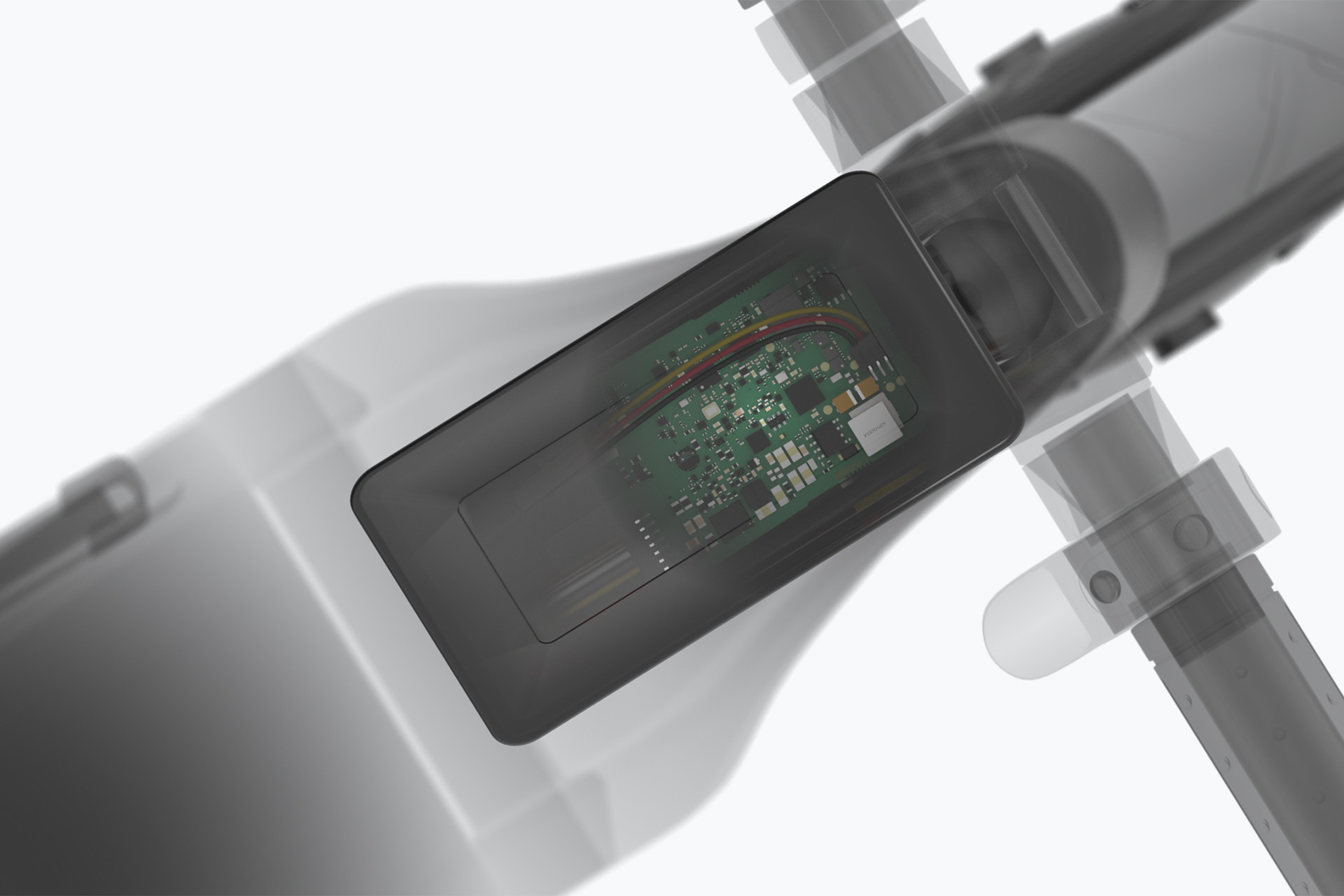

Unique no-casing version of FTC305 with external antenna and larger battery capacity for mounting inside e-bike and e-bicycle frames
CHOOSE THE MODEL FOR YOU
PRODUCT SPECIFICATIONS
Model name
FTC305-QJAB0
FTC305-QKAB0
FTC305-QJXB0
FTC305-QKXB0
Name
FTC305-QJAB0: Quectel EG915U-EU, internal antennas, casing version
FTC305-QKAB0: Quectel EG915U-LA, internal antennas, casing version
FTC305-QJXB0: Quectel EG915U-EU, external antennas, external battery, no casing version
FTC305-QKXB0: Quectel EG915U-LA, external antennas, external battery, no casing version
Technology
LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH® LE
GNSS
GPS, GLONASS, GALILEO, BEIDOU
Receiver
L1: 75 channel
Tracking sensitivity
-165 dBM
Position Accuracy
< 1.8 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Hot start
< 1 s
Warm start
< 25 s
Technology
LTE CAT 1/GSM
2G bands
GSM: B2/B3/B5/B8
4G LTE bands
FTC305-QJAB0: LTE FDD (EG915U-EU): B1/B3/B5/B7/B8/B20/B28
FTC305-QJXB0: LTE FDD (EG915U-EU): B1/B3/B5/B7/B8/B20/B28
FTC305-QKAB0: LTE FDD (EG915U-LA): B2/B3/B4/B5/B7/B8/B28/B66
FTC305-QKXB0: LTE FDD (EG915U-LA): B2/B3/B4/B5/B7/B8/B28/B66
Data transfer
LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)
GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit power
Class 5 for GSM850/900: 30±5dBM
Class 3 for GSM1800/1900: 29±5dBM
Class 3 for LTE-FDD: 26±5dBM
Data support
SMS (TEXT, PDU), Network protocols (TCP, UDP)
Input voltage range
10 - 97 V DC
Internal Back-up battery
Casing version: 380 mAh Li-ion battery 3.7 V (1.41 Wh)
No casing version: 1200 mAh Li-ion battery 3.7 V (4.44 Wh) (External)
Internal fuse
3 A
Power consumption
At 12V < 40 mA (Nominal with no load)
At 12V < 0.25 A Max (with full Load/Peak)
Specification
5.3 + LE*
available in future firmware releases
Dimensions
Casing version: 69 x 41 x 20.9 mm (L x W x H)
No casing version: 62 x 39.6 x 11.5 mm (L x W x H)
Weight
Casing version: 76.8 g
No casing version (with accessories): 126.1 g
Operating temperature
-30 °C to +85 °C
Storage temperature
-30 °C to +85 °C
Operating humidity
65 ± 20% non-condensing
Ingress Protection Rating
Casing version: IP67
No casing version: N/A
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +60 °C
Battery storage temperature
Casing version: -10 °C to +25 °C for 3 or more months
No casing version: -20 °C to +45 °C for 3 or more months
Digital Inputs
1
Digital Outputs
2
Analog Inputs
1*
available in future firmware releases
1-Wire
1*
available in future firmware releases
CAN
1
GNSS antenna
Casing version: Internal High Gain
No casing version: External (SMA female connector)
Cellular antenna
Casing version: Internal High Gain
No casing version: External (RP SMA female connector)
USB
2.0 USB Type-C
LED indication
2 status LED lights
SIM
Nano-SIM
Memory
128MB internal flash memory
Codec support
Codec 8 Extended
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, Unplug detection, Crash detection, Manual CAN data reading, Manual CAN commands
Sleep modes
Online sleep, Deep sleep, Power off sleep*
available in future firmware releases
Configuration and firmware update
FOTA WEB, Telematics Configuration Tool (TCT)
Time Synchronization
GNSS, NITZ, NTP
Ignition detection
Digital Input 1, Accelerometer, External Power Voltage
