LTE Cat M1 and NB IoT connectivity support with fallback to 2G ensures wide-ranging coverage for your fleet management needs
Simply plug the device in OBD-II port and start tracking
Crash detection functionality based on 3-axis built-in accelerometer with fully configurable parameters through our software to ensure accurate crash trace data
Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement
Name

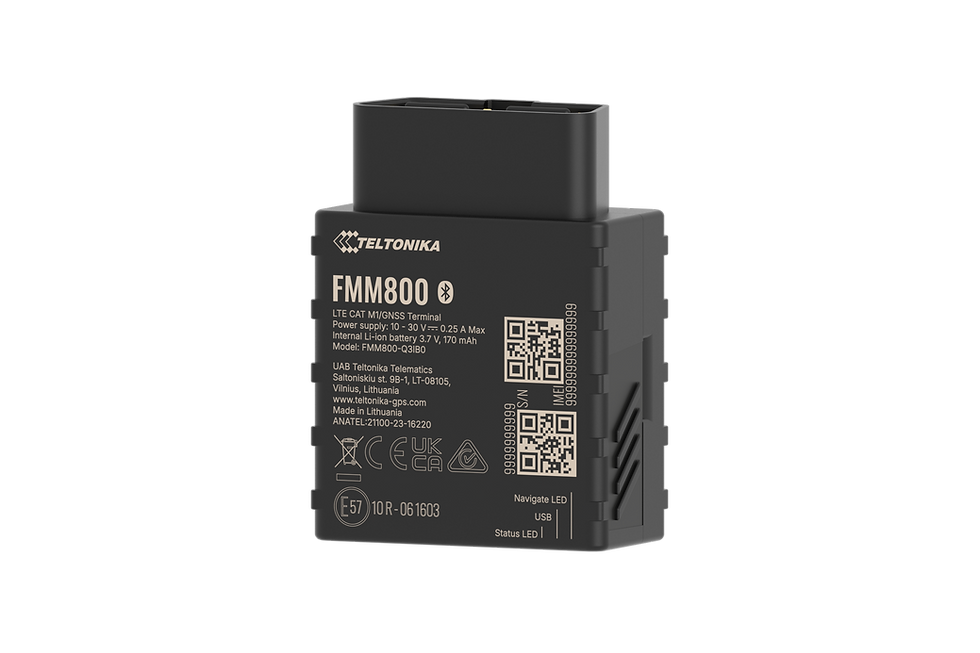

FMM800-Q3IB0: Quectel BG95-M3 with Teltonika TM2500
Technology
LTE CAT M1/NB-IoT/GSM/GPRS/GNSS/BLUETOOTH
GNSS
GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver
33 tracking channel
99 acquisition channel
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Hot start
< 1 s
Warm start
< 25 s
Cold start
< 35 s
2G bands
FMM800-Q3IB0: GSM: B2/B3/B5/B8
4G LTE Cat M1 bands
FMM800-Q3IB0: LTE-FDD (CAT M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B27/B28/B66/ B85
FMM800-Q3IB0: LTE-FDD (CAT NB2): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
Data transfer
LTE: LTE FDD (CAT-M1): Max. 588Kbps (DL)/Max.1119Kbps (UL)
LTE: LTE FDD (CAT-NB2): Max. 127Kbps (DL)/Max.158.5Kbps (UL)
GSM: GPRS: Max. 107Kbps (DL)/Max. 85.6Kbps (UL)
Data support
SMS (text/data)
Input voltage range
10–30 V DC with overvoltage and reverse polarity protection
Internal Back-up battery
170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse
3A, 125V
Specification
4.0 + LE
Supported peripherals
Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support
Connection
OBDII Socket
GNSS antenna
Internal High Gain
Cellular antenna
Internal GSM High Gain
USB
2.0 Micro-USB
LED indication
2 status LED lights
SIM
Micro-SIM
Memory
128MB internal flash memory
Dimensions
67,2 x 49,6 x 25 mm (L x W x H)
Weight
63 g
Operating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP41
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +60 °C
Battery storage temperature
-20 °C to +35 °C for 1 month
-20 °C to +30 °C for 6 months
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update
FOTA Web, Teltonika Configurator (USB, Bluetooth)
SMS
Configuration, Events, Debug
GPRS commands
Configuration, Debug
Time Synchronization
GNSS, NITZ, NTP
Ignition detection
Accelerometer, External Power Voltage
Regulatory
FMM800-Q3IB0: CE/RED, REACH, RoHS, E-Mark, RCM
