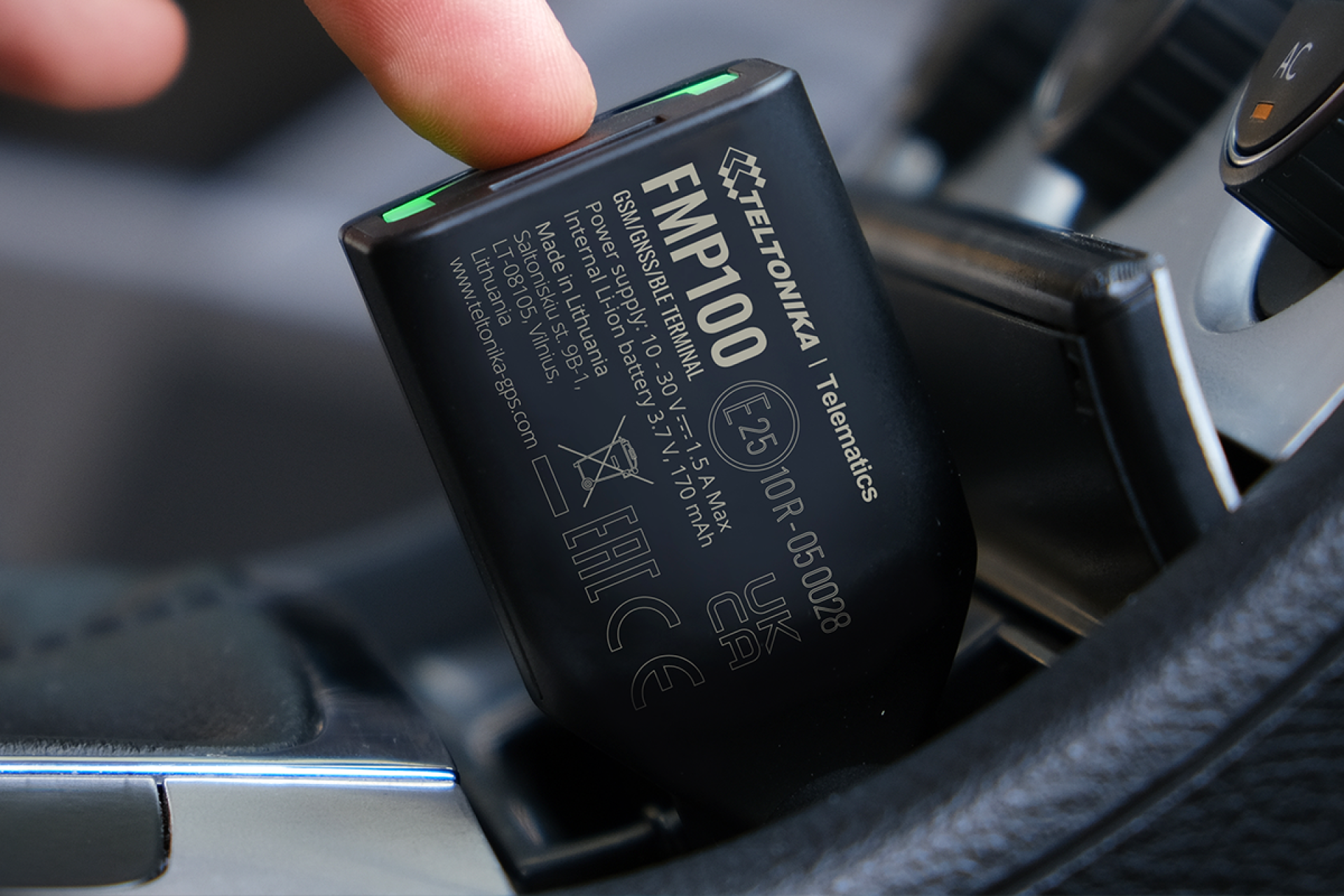

FMP100
2G Plug & Play tracker connected via cigarette lighter socket
Press the button and generate an alarm event in case of an accident or use it as a switch for Private/Business trips

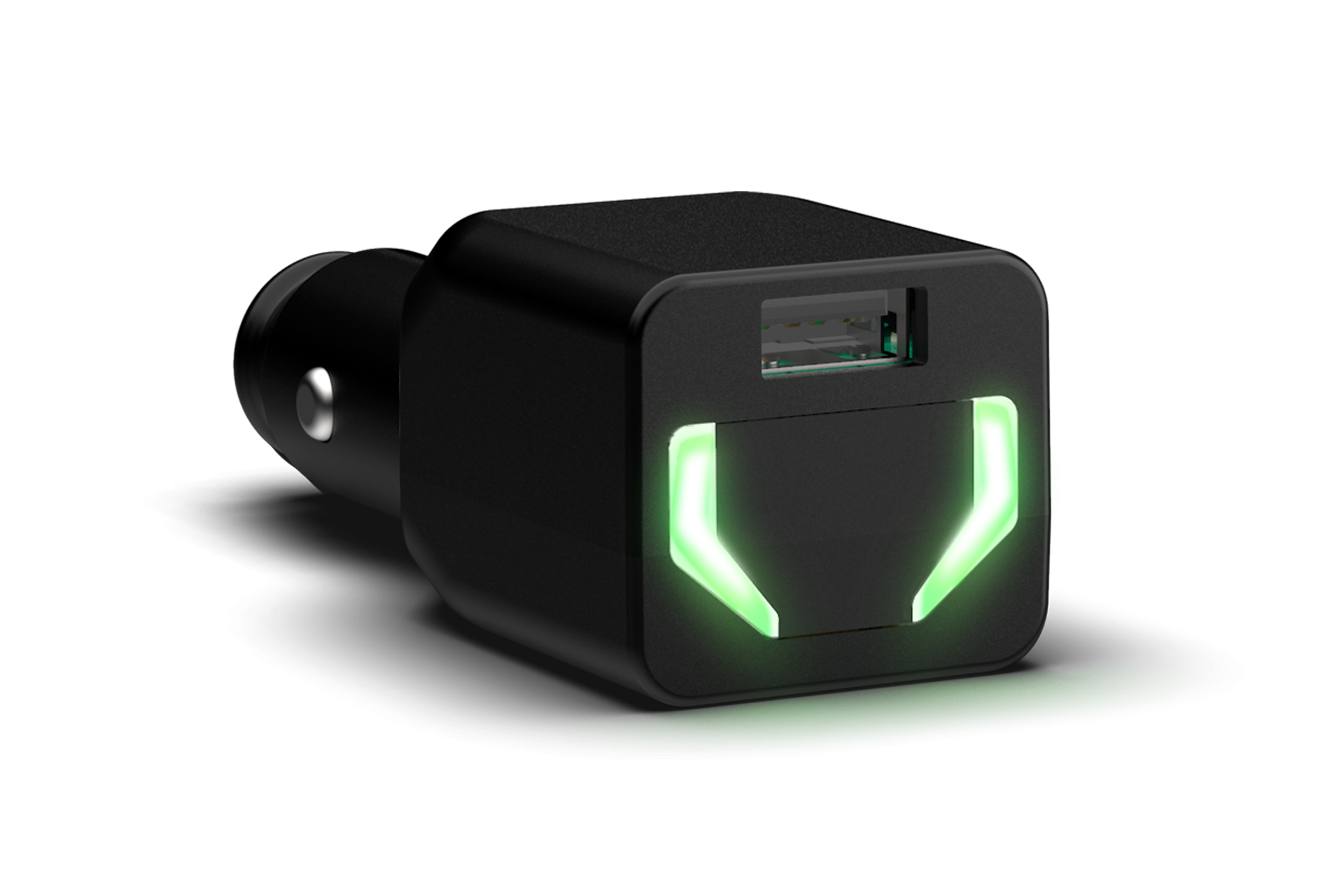

Built-in RGB LED and buzzer help a driver know the device status and the events of a vehicle
Practical feature suitable for external devices such as smartphones, pods, etc.
Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement
Name
Teltonika TM2500
Technology
GSM/GPRS/GNSS/BLUETOOTH
GNSS
GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver
33 tracking channel
99 acquisition channel
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Hot start
< 1 s
Warm start
< 25 s
Cold start
< 35 s
Technology
GSM
2G bands
Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer
GPRS Multi-Slot Class 12(up to 240 kbps)
Data support
SMS (text/data)
Input voltage range
10–30 V DC with overvoltage and reverse polarity protection
Internal Back-up battery
170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Power consumption
At 12V < 5 mA (Ultra Deep Sleep)
At 12V < 7 mA (Deep Sleep)
At 12V < 7 mA (Online Sleep)
At 12V < 8 mA (GPS Sleep)
At 12V < 28 mA (nominal)
Specification
4.0 + LE
Supported peripherals
Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
Connection
Cigarette lighter socket
GNSS antenna
Internal High Gain
Cellular antenna
Internal GSM High Gain
USB
1 x USB 2.0 Micro-USB for configuration
1 x USB type A for external device charging (5V 1A)
LED indication
RGB LED
SIM
Nano-SIM
Memory
128MB internal flash memory
Dimensions
96,7 x 33,4 x 27,5 mm (L x W x H)
Weight
55,5 g
Operating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP41
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +60 °C
Battery storage temperature
-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update
FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®)
SMS
Configuration, Events, Debug
GPRS commands
Configuration, Debug
Time Synchronization
GNSS, NITZ, NTP
Fuel monitoring
OBDII dongle
Ignition detection
Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
Regulatory
CE/RED, E-Mark, EAC, RoHS, REACH, SIRIM QAS, SDPPI POSTEL
