Power supply from 6V makes this device ideal for all kinds of vehicles, including two-wheelers
Robust IP67-rated casing provides trusted protection against dust and resistance to water

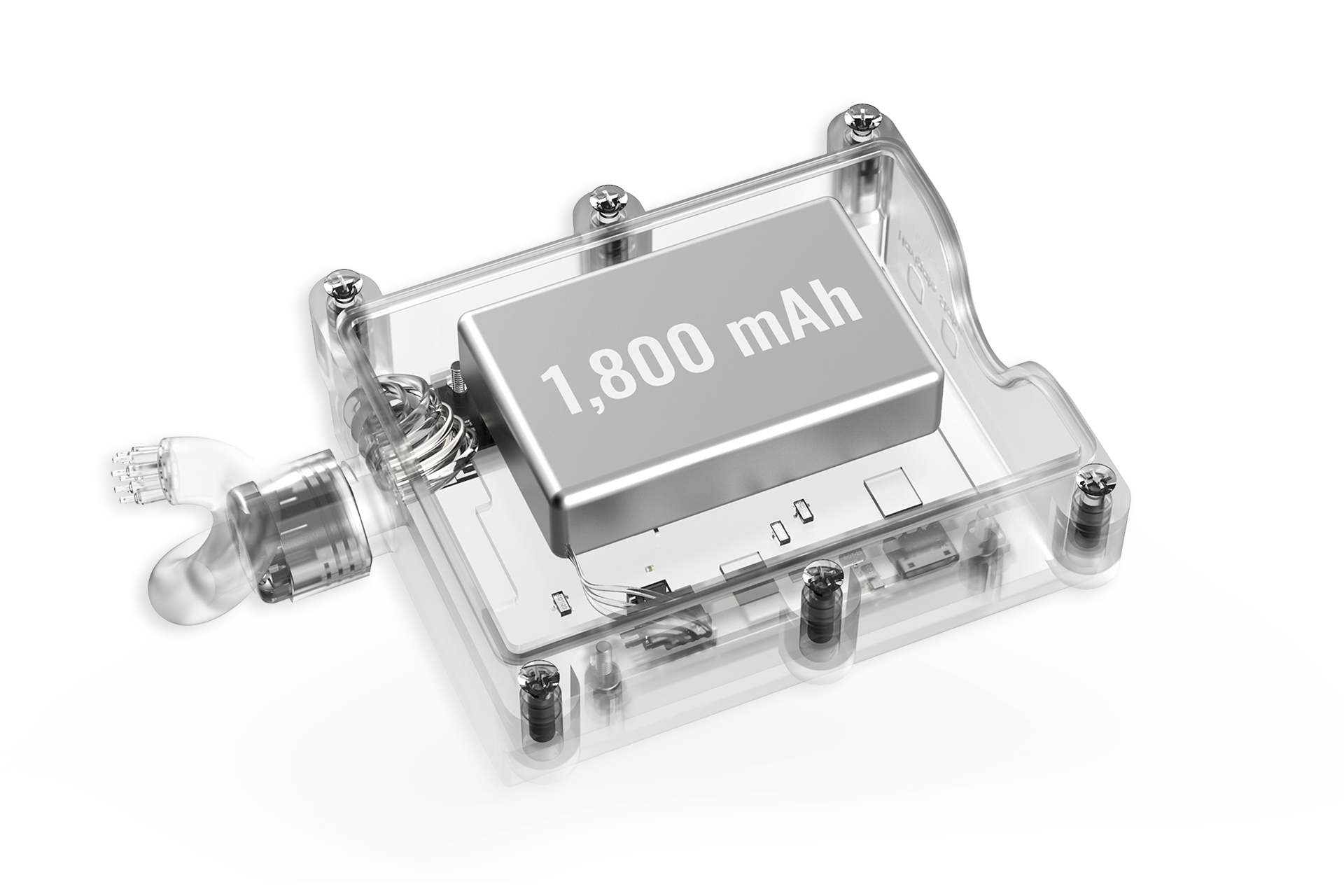

Large-capacity 1,800 mAh Li-ion internal backup battery for extended device operation time
Bluetooth® LE-based wireless connection of external devices, including Low Energy beacons and sensors to monitor temperature, humidity, magnet detection, and movement
CHOOSE THE MODEL FOR YOU
PRODUCT SPECIFICATIONS
Name
Teltonika TM2500
Technology
GSM/GPRS/GPS/BLUETOOTH® LE
GNSS
GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver
33 tracking channel
99 acquisition channel
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Hot start
< 1 s
Warm start
< 25 s
Cold start
< 35 s
Technology
GSM
2G bands
Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer
GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support
SMS (text/data)
Input voltage range
6–30 V DC with overvoltage protection
Internal Back-up battery
1800 mAh Li-Ion battery, 3.7V (6.66Wh)
Specification
4.0 + LE
Supported peripherals
Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner,Universal Bluetooth® LE sensors support
Dimensions
72,5 x 73 x 27,3 mm (L x W x H)
Weight
205 g
Operating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP67
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +70 °C
Battery storage temperature
-10 °C to +45°C
Digital Inputs
3
Digital Outputs
2
Analog Inputs
1
1-Wire data
1
1-Wire power
1
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 Micro-USB
LED indication
2 status LED lights
SIM
Micro-SIM or eSIM
Memory
128MB internal flash memory
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, DOUT Control Via Call, GNSS Fuel Counter, Immobilizer, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update
FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)
SMS
Configuration, Events, DOUT control, Debug
GPRS commands
Configuration, DOUT control, Debug
Time Synchronization
GNSS, NITZ, NTP
Fuel monitoring
LLS (Analog), OBDII dongle
Ignition detection
Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
Regulatory
CE/RED, Pulse 5a, E-Mark, EAC, RoHS, REACH, SIRIM QAS
