Robust IP67-rated casing provides trusted protection against dust and resistance to water
Reading CAN data from light & electric vehicles, trucks, buses and special machinery
Extensive data collection enables detailed analysis of vehicle operations, facilitating effective maintenance and performance optimisation
Supported vehicle list with all available manufacturer models and parameters
CHOOSE THE MODEL FOR YOU
PRODUCT SPECIFICATIONS
Name

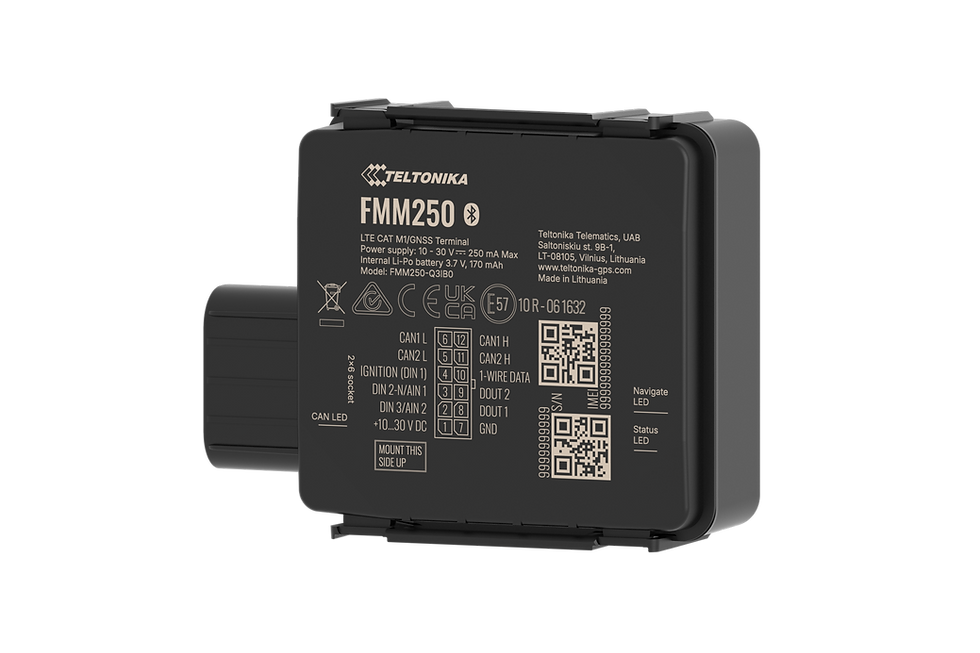

FMM250-Q3IB0: Quectel BG95-M3 with Teltonika TM2500
Technology
LTE Cat M1/GSM/GPRS/GNSS/BLUETOOTH® LE
GNSS
GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver
33 tracking channels
99 acquisition channels
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Hot start
< 1 s
Warm start
< 25 s
Cold start
< 35 s
Technology
LTE Cat 1, GSM
2G bands
BG95: B2/B3/B5/B8
4G LTE bands
BG95: LTE-FDD (CAT M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B27/B28/B66/B85
LTE-FDD (CAT NB2): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
Data transfer
BG95: LTE: Max. 588Kbps (DL)/Max.1119Kbps (UL)
GPRS: Max. 107Kbps (DL)/Max. 85.6Kbps (UL)
Data support
SMS (text/data)
Input voltage range
10 - 30 V DC with overvoltage protection
Internal Back-up battery
170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Power consumption
At 12V < 6mA (Ultra Deep Sleep)
At 12V < 8mA (Deep Sleep)
At 12V < 11mA (Online Deep Sleep)
At 12V < 20mA (GPS Sleep)
At 12V < 35 mA (Nominal with no load)
At 12V < 250 mA Max. (with full Load / Peak)
Specification
4.0 + LE
Supported peripherals
Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLUETOOTH® LE sensors support
Dimensions
70,5 x 67,0 x 25,6 mm (L x W x H)
Length with connector socket
85,0 x 67,0 x 25,6 mm (L x W x H)
Weight
73,5 g
Operating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP67
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +60 °C
Battery storage temperature
-20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
Digital Inputs
3
Negative Inputs
1 (Digital Input 2)
Impuls Inputs
2 (Digital Input 1, Digital Input 2)
Analog Inputs
2
Digital Outputs
2
CAN interfaces
2
1-Wire
1 (1-Wire data)
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 Micro-USB
LED indication
3 status LED lights
SIM
Micro-SIM or eSIM
Memory
128MB internal flash memory
CAN Data
Fuel Level (Dashboard), Total fuel consumption, Vehicle speed (wheel), Vehicle driven distance, Engine speed (RPM), Accelerator pedal position
Supported protocols
OEM, J1939, IES500, IES125
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update
FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®)
SMS
Configuration, Events, DOUT control, Debug
GPRS commands
Configuration, DOUT control, Debug
Time Synchronization
GNSS, NITZ, NTP
Ignition detection
Digital Input 1, Accelerometer, External Power Voltage, Engine RPM
Regulatory
CE/RED, E-Mark, RCM, RoHS, REACH
