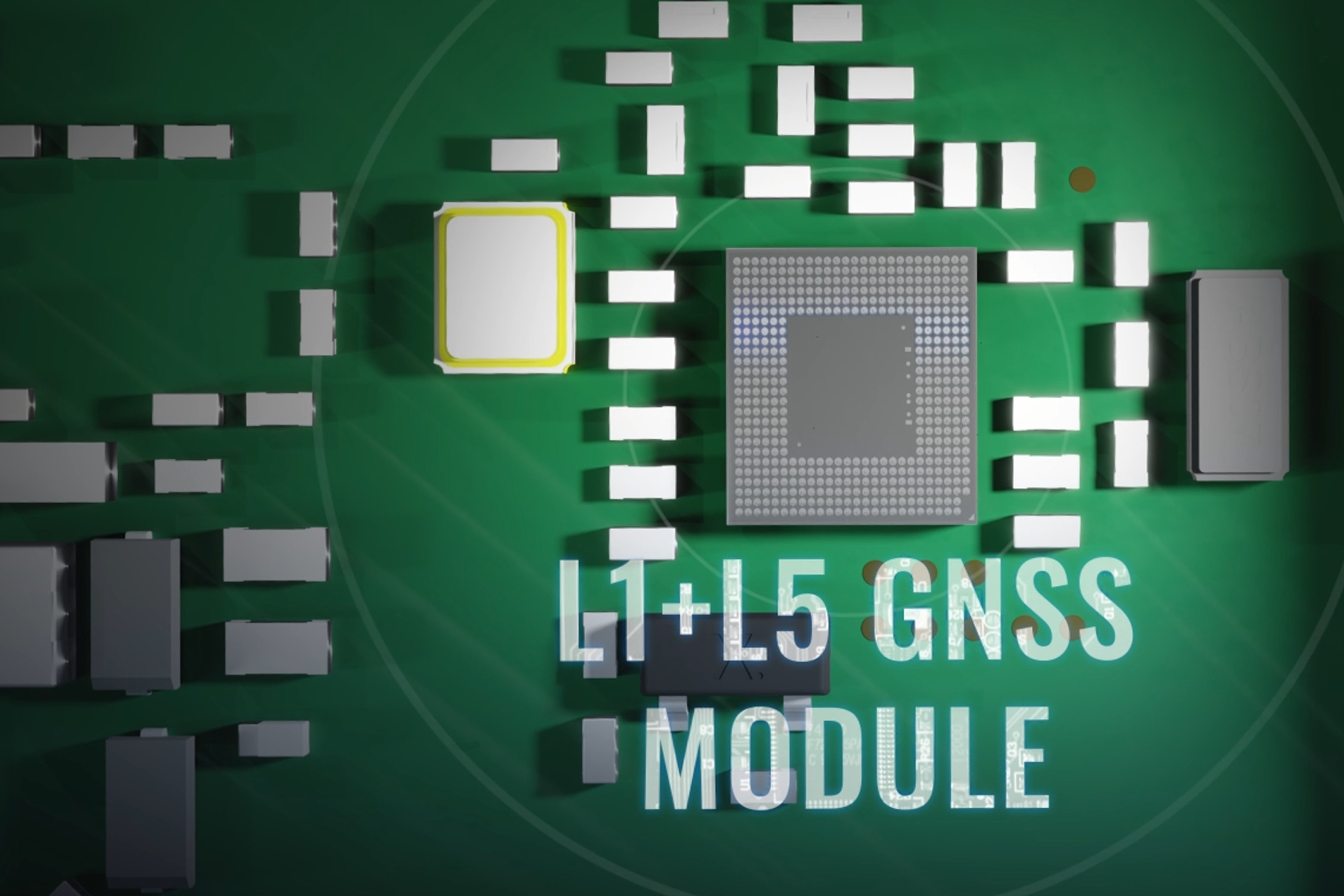

Reliable 4G LTE Cat M1 and NB IoT connectivity support with fallback to 2G network ensures wide-ranging coverage of your fleet management needs. This model uses a separate module to gather GNSS data and has dual-channel, L1 + L5 support.
Tachograph live data reading via K-Line, Tacho CAN or FMS connections for everyday driver management and fleet efficiency
Read J1939 data that includes standard CAN FMS from heavy vehicles like trucks and raw J1939 data from special machinery, such as construction cranes or electric buses. Possibility to connect to CAN line with multiple nodes.
2x RS232 and 1x RS485 serial communication interfaces for connecting external devices, such as thermographs, sensors, RFID readers and more
CHOOSE THE MODEL FOR YOU
PRODUCT SPECIFICATIONS
Name
FMM650-Q3X50: Quectel BG95-M3
Technology
LTE CAT M1/NB-IoT/GSM
Module name
Airoha AG3335MB
GNSS
GPS, GLONASS, GALILEO, BEIDOU, QZSS
Receiver
L1: 75 acquisition/tracking channel
L5: 60 tracking channel
Tracking sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Hot start
1 s
Warm start
< 25 s
Cold start
< 32 s
Technology
LTE CAT M1/CAT NB1, GSM
2G bands
FMM650-Q3X50: B2/B3/B5/B8
4G LTE bands
LTE-FDD (CAT M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B27/B28/B66/B85
LTE-FDD (CAT NB2): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
Data transfer
LTE FDD: LTE: Max. 588Kbps (DL)/Max.1119Kbps (UL)
GPRS
Max. 107Kbps (DL)/Max. 85.6Kbps (UL)
Data support
SMS (text/data)
Transmit power
Class 4 for GSM850/900: 23±2dBm
Class 1 for GSM1800/1900: 20±2dBm
Class 3 for LTE-TDD: 23±2.7dBm
Class 3 for LTE-FDD: 23±2.7dBm
Input voltage range
8–32 V DC with overvoltage (compatible with pulse 5a and pulse 5b) and reverse polarity protection
Internal Back-up battery
550 mAh Ni-Mh, 8.4 V battery
Internal fuse
3A, 125V
2 W max. Current consumption at 12 V
At 12V < 4 mA (Deep Sleep)
At 12V < 11 mA (Online Deep Sleep)
At 12V < 32 mA (GPS Sleep)
At 12V < 45 mA (nominal with no load)
At 12V < 0.25 A Max. (with full Load / Peak)
2 W max. Current consumption at 24 V
At 24V < 2,9 mA (Deep Sleep)
At 24V < 7 mA (Online Deep Sleep)
At 24V < 17 mA (GPS Sleep)
At 24V < 35 mA (nominal with no load)
Name
Blue NRG232
Specification
5.0 + LE
Supported peripherals
Temperature and Humidity sensor, Universal Bluetooth® LE sensors support
Dimensions
104,1 x 76,8 x 31,5 mm (L x W x H)
Weight
197 g
Operating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Battery charge temperature
Ta = 20 ± 5 °C (Ambient Temp.)
Battery discharge temperature
Ta = 20 ± 5 °C (Ambient Temp.)
Battery storage temperature
-20 °C to +45°C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP41
Digital Inputs
4
Digital Outputs
4
Analog Inputs
4
1-Wire
1
RS232
2
RS485
1
CAN J1939
2
J1708
1
K-line
1
GNSS antenna
External High Gain (L1+L5)
Cellular antenna
External High Gain
USB
2.0 Mini-USB – device can be powered by USB for easier device configuration
LED indication
2 status LED lights
SIM
2x Mini-SIM Card (Dual-SIM) or 1x eSIM
Memory
16 MB internal flash memory and external Micro SD card up to 32GB
Switchable CAN terminals
Supported on CAN1 and CAN2 lines
Sensors
Accelerometer
Functionalities
Auto Geofencing, Manual Geofencing, Trip detection, Odometer, DDD download and Tacho online data, Offline tracking
Scenarios
Green/Eco Driving, Over Speeding detection, Excessive Idling detection, Towing detection, Crash
detection, Immobilizer, iButton Read Notification
Supported peripherals
Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, LV-CAN200, ALL-
CAN300, CAN FMS (J1939, J1708), K-line data, Continental tire pressure measurement sensor,
Iridium SBD (Iridium Edge/TSM232), Carrier freezer, Log Mode, NMEA, TCP ASCII/Binary,
Temperature and humidity sensor, Universal Bluetooth® LE sensors support
Sleep modes
GPS Sleep, Online Deep Sleep, Deep Sleep
Configuration and firmware update
FOTA Web, FOTA, Teltonika Configurator
SMS
Configuration, Events, DOUT control, Debug
GPRS commands
Configuration, DOUT control, Debug
Time Synchronization
GNSS, NITZ, NTP
Fuel monitoring
LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, CAN FMS, Ultrasonic level sensor
Ignition detection
Digital Input, Accelerometer, External Power Voltage
RS232 Modes
Log Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/Binary, TCP ASCII/Binary (Buffered), Rec to LCD, Atol Tachograph, UL202-2 Fuel Sensor, Iridium Edge/TSM232 Satellite backup, Carrier Freezer
RS485 Modes
Silent, Log Mode, NMEA, LLS, TCP ASCII/Binary, TCP ASCII/Binary (Buffered)
Regulatory
(In progress)
